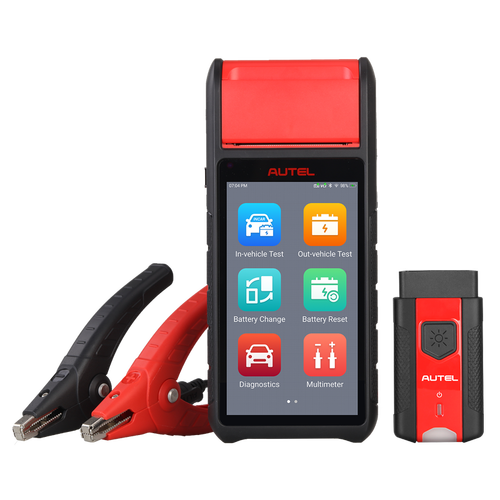

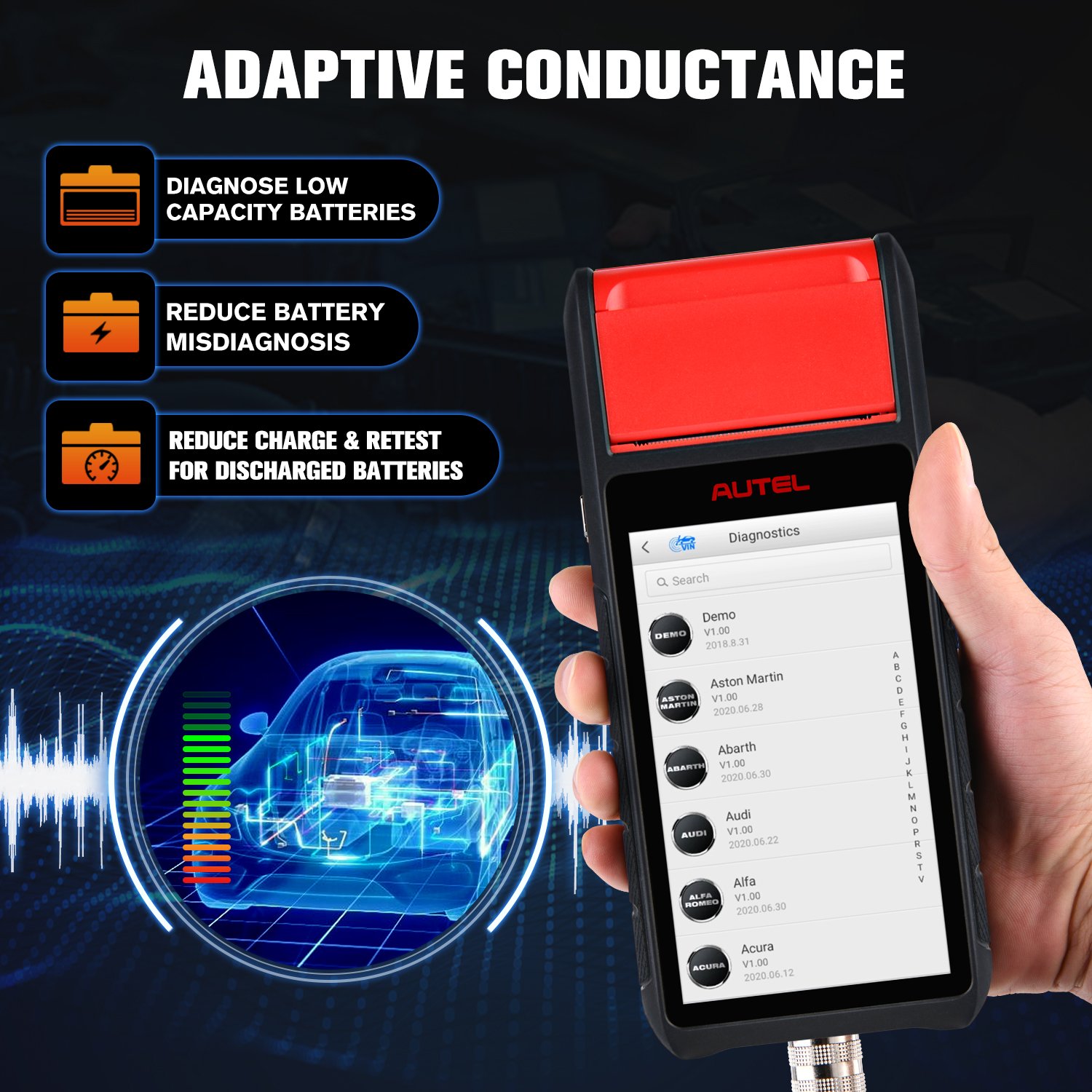

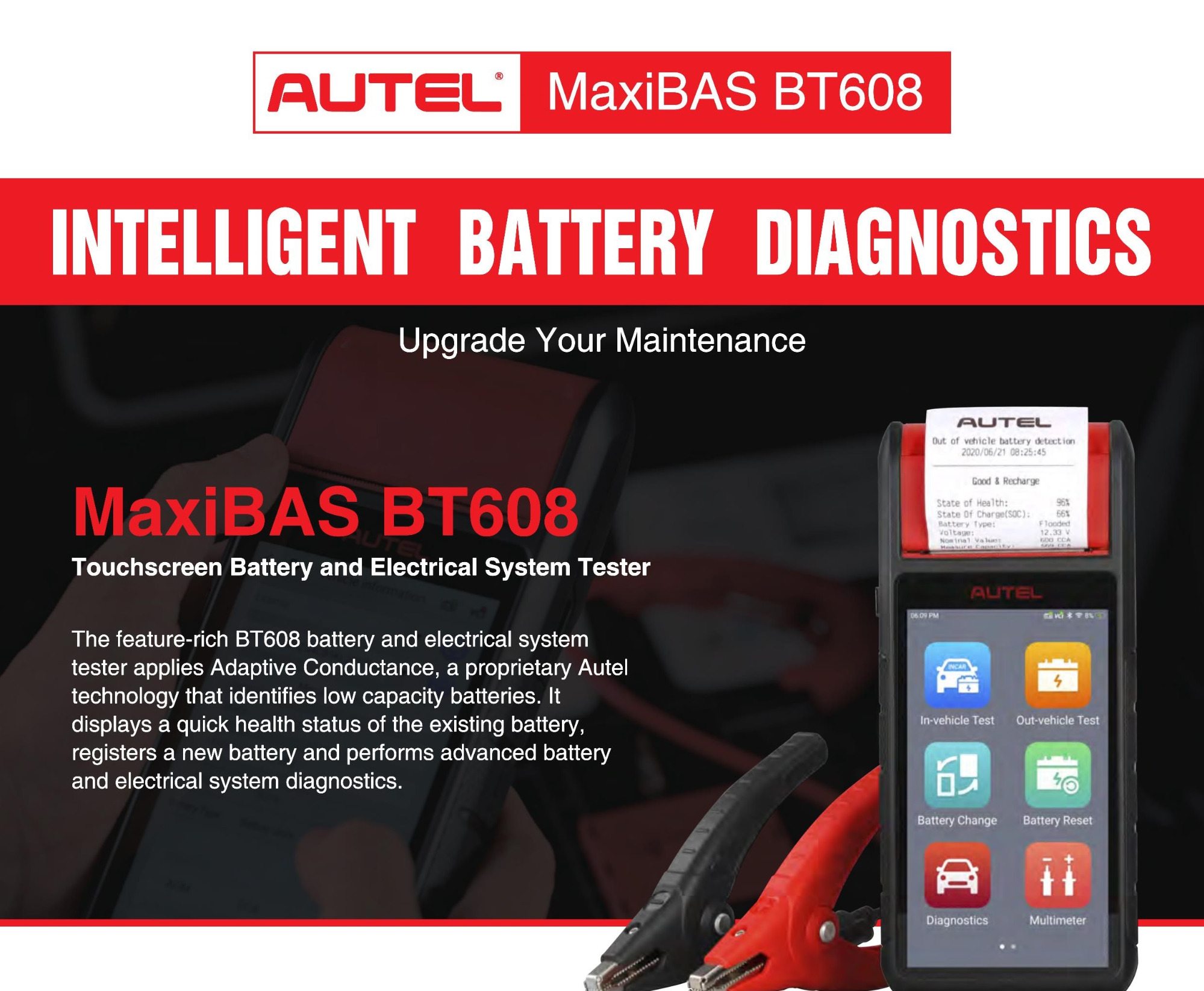

The feature-rich BT608 battery and electrical system tester applies Adaptive Conductance, a proprietary Autel technology that identifies low capacity batteries. It displays a quick health status of the existing battery, registers a new battery and performs advanced battery and electrical system diagnostics.
Test 6- and 12-volt batteries: 100 – 3000 CCA
Test 12- and 24-volt cranking/charging systems
Test Flooded, AGM, AGM Spiral, EFB and GEL batteries
Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA

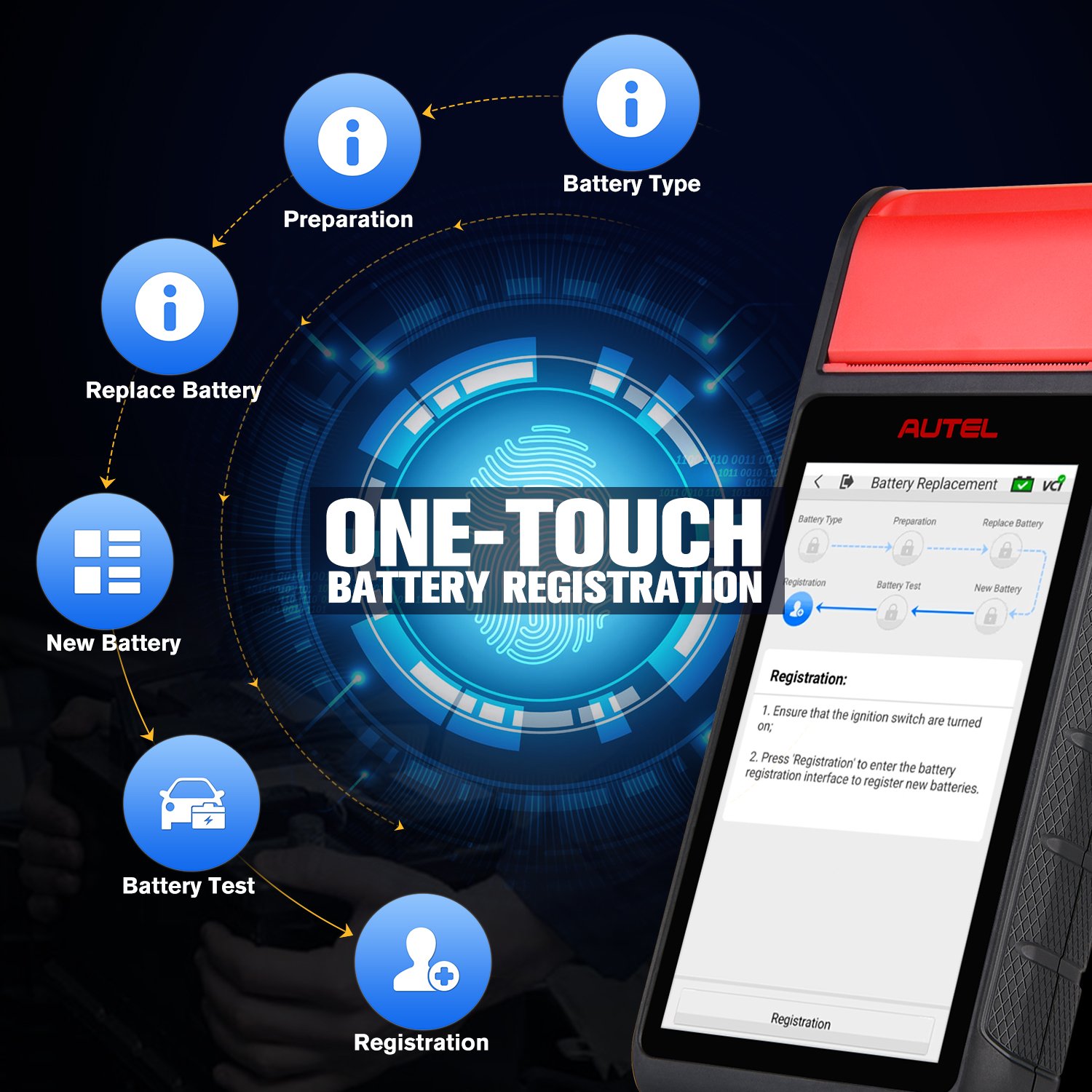

One-touch Battery registration

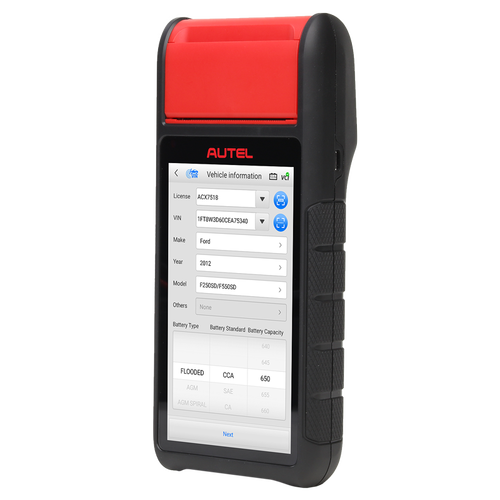

Quick display of battery specifications through battery barcode scan, Auto and manual VIN entry
Illustration instruction guides for battery positioning and testing

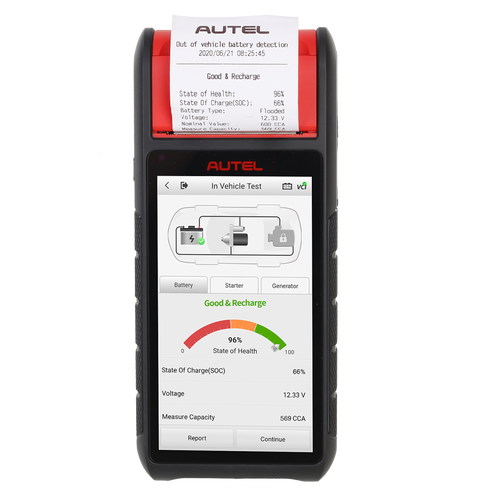

Print test reports via built-in thermal printer
Read and erase codes of all available systems
|
Operating System |
Android 9.0 |
|
Screen Display |
5.5'' LCD touch screen with 720*1280 resolution |
|
Connectivity |
Wi-Fi (802.11 a/b/g/n/ac); USB 2.0, Type C; BT5.0+EDR |
|
Camera |
8 Megapixel |
|
Input Voltage |
15V DC |
|
Electric power |
< 450 mA at 7.7 V DC |
|
Internal Battery |
7.7 V, 3000 mAh |
|
CCA Range |
100 to 3000 A |
|
Voltage Range |
1.5 to 36 V |
|
Working Temperature |
0° to 50°C |
|
Storage Temperature |
-10° to 60° C |
|
Dimension (L x W x H) |
204 mm x 90 mm x 32 mm |
|
Weight |
510 g |
