Autel MaxiSYS Elite MS908E (2Y Version)

Autel MaxiSys Elite

Autel Maxisys Elite All System Diagnosis

• I/M Readiness, O2 Sensor Monitor, On-Board Monitor, Vehicle Information and Vehicle Status
• Retrieve and display ECU information of tested control unit, including unit type, version numbers and other specifications;
• Read all kinds of DTCs from vehicle’s control systems to locate problem areas and offer possible solutions;
• Erase the codes easily after DTCs retrieving and certain repairs have been carried out;
• Live data of each parameter item displayed in analog, text, waveform graph, digital, or full screen display modes;
• Active test used to access vehicle-specific subsystem and component tests.

​​​​​​Autel Maxisys Elite Special Functions:

• Oil Reset Service: To reset the Engine Oil Life system, which calculates an optimal oil life change interval depend on the vehicle driving conditions and climate. The Oil Life Reminder must be reset every time the oil is changed, so the system can calculate when the next oil change is required.
• Tire Pressure Monitor System (TPMS) Service: allows you to look up the tire sensor IDs from the vehicles ECU, as well as to perform TPMS programming and reset procedures after tire sensors are replaced.
• Electric Parking Brake (EPB) Service: Deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.
• ABS/SRS Services: To perform various bi-directional tests to check the operating conditions of both the Anti-lock Braking System and the Supplemental Restraint System, such as Automated Bleeding, Pump Motor Test, and checking Module information, etc.
• Steering Angle Sensor (SAS) Service: Allowing you to perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. On successful completion of the calibration, the steering angle sensor fault memory is automatically cleared.
• Diesel Particulate Filter service (DPF): Designed to perform the regeneration procedure which is the DPF cleaning operation to clear the blockage through continuous burning of the particulate matter captured in the DPF filter. If the DPF light on the vehicle comes on and you successfully complete a DPF regeneration cycle, you will notice that the DPF light will automatically turn off.

• ECU matching on Ford enables you match the new ECU with your vehicle after replacing the old one
• Coding function helps you do programming and coding on some specified control modules
• Leading function for VW & Audi offers you a step-by-step guidance as how to fix the problem when you diagnosed the problem of the vehicle
• Anti-theft matching can disable the lost key and add the new key’s information to program to ensure the security of your vehicle
• Injector programming will write the new code to the ECU after replacement of injector, so that the injector works
• Throttle matching is to do ECU matching after throttle cleaning or replacement, etc.

Autel Maxisys Elite Online Programming

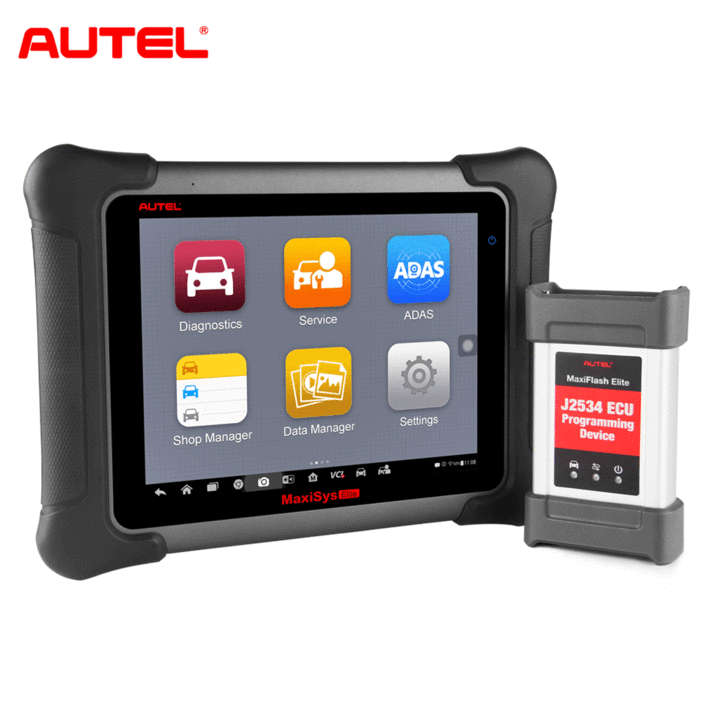

• Maxisys Elite diagnostic tool come with Autel MaxiFlash Elite which allows it to process online ECU programming on Benz and BMW vehicles. This is the most advanced and valuable function for many mechanics and professional DIYers. Just do it as instructed, you will find it is easy to fix the complex problem with the guidance.

Autel MaxiSys Elite Autel Cloud Technology

1. MaxiFix application launches the on-line troubleshooter database, which not only provides you virtually all common diagnostic trouble code (DTC) database for most vehicles, but also serves as a forum allowing you to network with other MaxiSys users, and gives you access to a vast database of repair and diagnostic tips along with proven filed fixes.
2. Data Manager application is used to store, print, and review the saved files.
3. Shop Manager application helps you to manage the workshop information,customer information records, and keep test vehicle history records, which can be a great assist in dealing with daily workshop business and improves customer service

Autel Maxisys Elite Automakers’ Service Web

• BMW: http://www.bmwtechinfo.com/
• Mini: http://www.minitechinfo.com/
• Porsche: http://www.porsche.com/
• Chrysler, Jeep, Dodge: http://www.techauthority.com/
• Ford, Lincoln, Mercury: http://www.motorcraft.com/
• Land Rover: http://www.landrovertechinfo.com/
• Volvo: http://www.volvotechinfo.com/
• Cadillac, Chevrolet, Daewoo, GM, GEO, Pontiac, Buick, Saturn, SAAB, : http://www.gmtechinfo.com/
• Acura, Honda: http://www.serviceexpress.honda.com/
• Isuzu: http://www.isuzutechinfo.com/
• Mazda: http://www.mazdaserviceinfo.com/
• Mercedes: http://www.startekinfo.com/
• Mitsubishi: http://www.mitsubishitechinfo.com/
• Nissan: http://www.nissan-techinfo.com/
• Toyota, Lexus, Scion: http://techinfo.toyota.com/
• Volkswagen: http://www.erwin.volkswagen.de/erWinVW/
• Audi: http://erwin.audi.de/erWinAudi/
• Note: When reprogramming on-board, always make sure the vehicle battery is fully charged and in good working condition. During reprogramming there is a risk of having the operation failure if voltage falls below the proper operating voltage. Sometimes a failed operation can be recovered, but there is a chance that failed reprogramming could ruin the control module. We recommend connecting an external battery charger to the vehicle to ensure a successful operation.

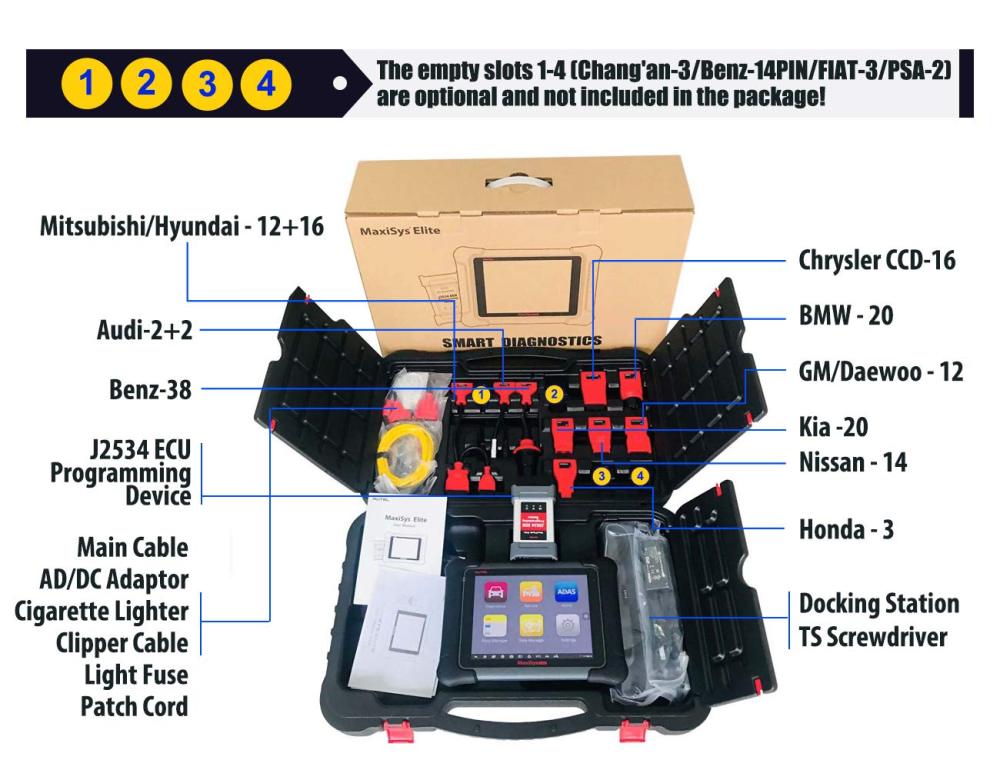

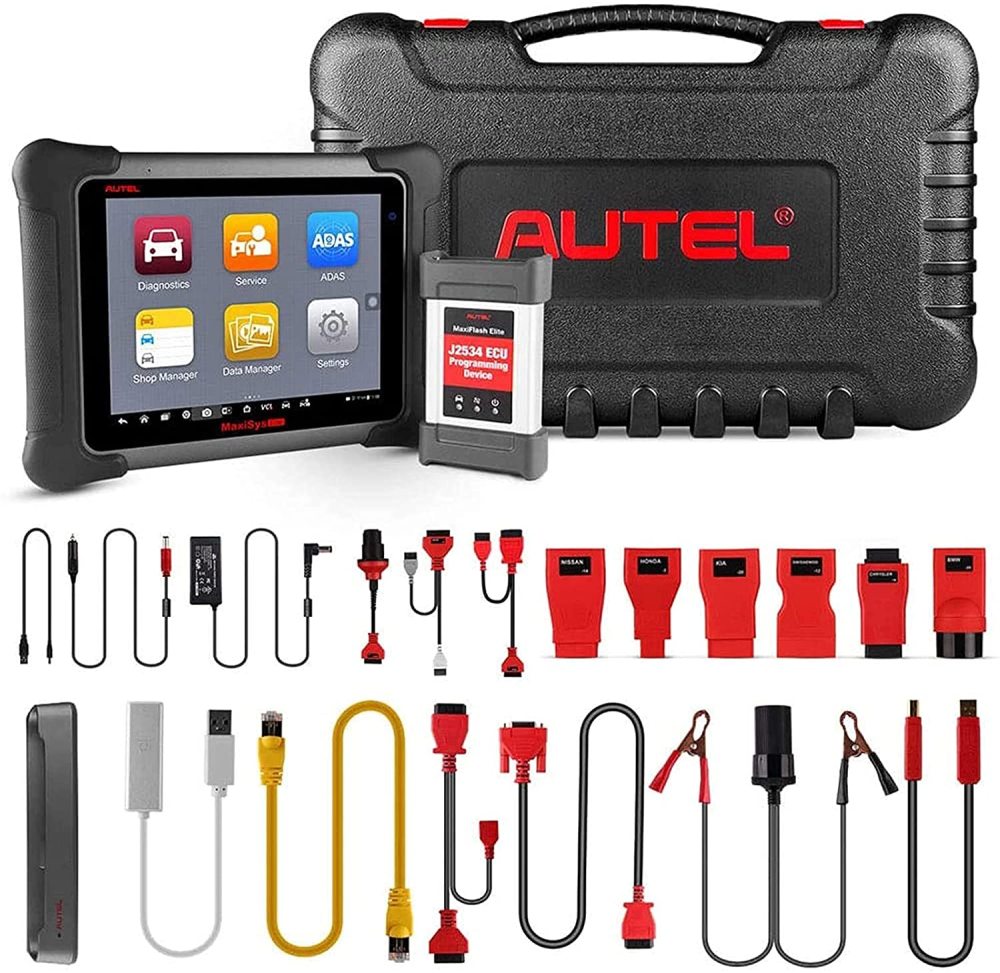

Autel MaxiSys Elite Package List:

• 1x Maxisys Elite Main Unit
• 1x MaxiFlash Elite
• 1x USB Ethernet Adapter (Optional)
• 1x BMW Ethernet Cable (Optional)
• 1x Ethernet Serial Cable (Optional)AC/DC Adapter (12V)
• 1x AC/DC Adapter (12V)
• 1x Adapter for GM/Daewoo-12
• 1x Adapter for Fiat-3 (Cancelled)
• 1x Adapter for Benz-38
• 1x Adapter for Mitsubishi/Hyundai-12+16
• 1x Adapter for Honda-3
• 1x Adapter for PSA-2 (Cancelled)
• 1x Adapter for BMW-20
• 1x Adapter for Kia-20
• 1x Adapter for Nissan-14
• 1x Adapter for VW/AUDI-2+2
• 1x Adapter for Benz-14 (EU version only)
• 1x Adapter for Chrysler-16 (America Only)
• 1x Cigarette Lighter
• 1x Docking Station
• 1x TS Screwdriver
• 1x User Manual
• 1x Quick Reference Guide
• 1x Carrying Case
• 1x Lighter Fuse
• 1x Main cable
• 1x USB Cable
• 1x Clipper Cable
• 1x Soft Cloth
• 1x Mini USB Cable

Note: If the cable is Optional, it is not included in the box! There are some empty slots in the package. (Fiat-3, PSA-2, BENZ-14 adapter are cancelled now, if you need them you can buy them additionally!)
