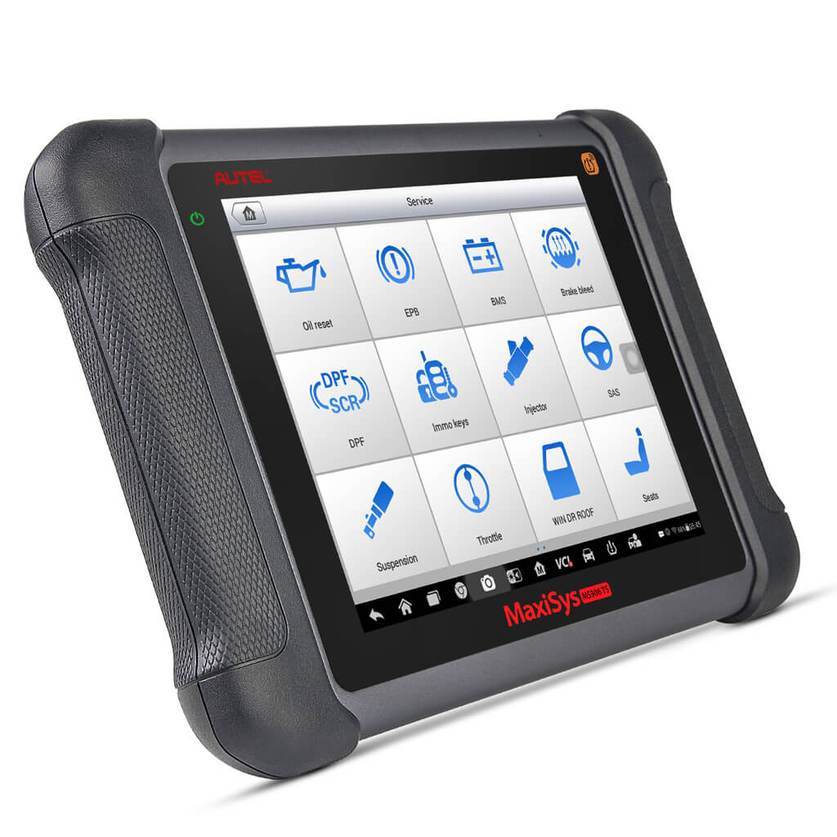

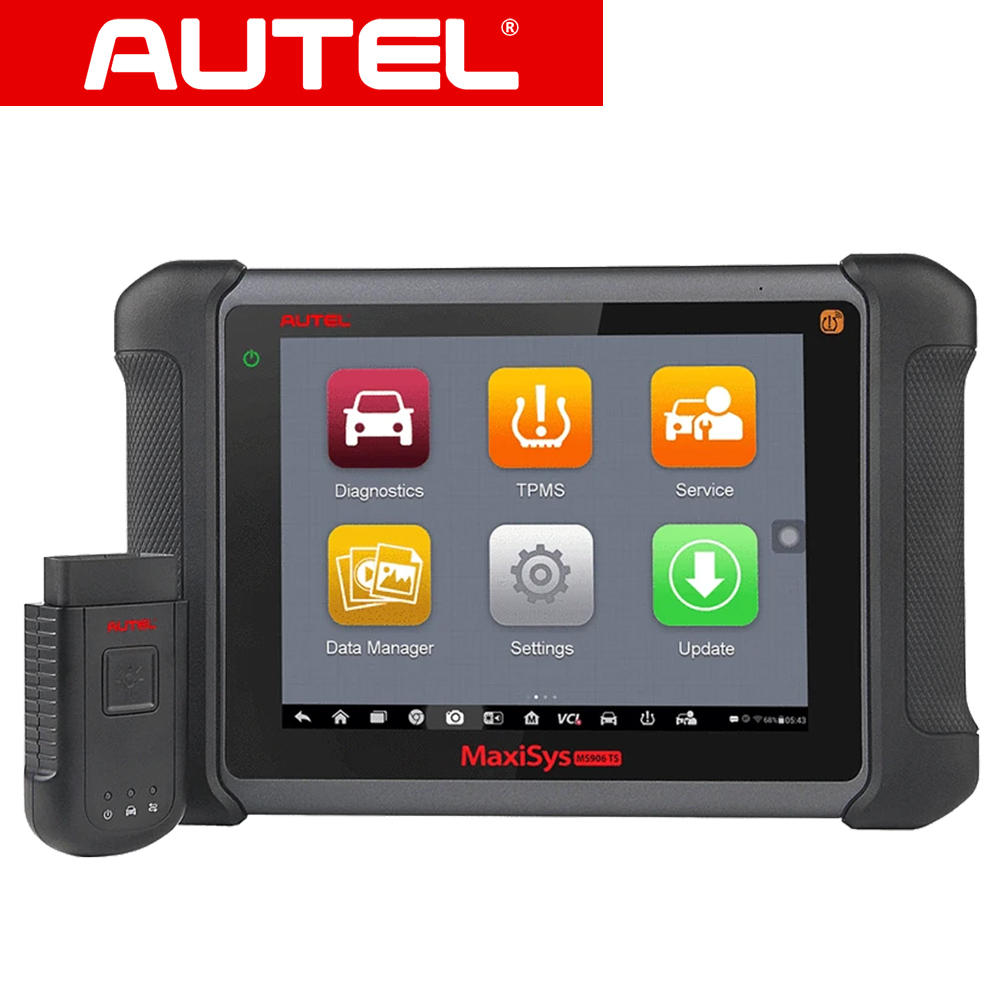

Autel MaxiSys MS906TS is the latest addition to the MaxiSys product line of advanced wireless diagnostic devices integrated with the TPMS antenna module. The device provides comprehensive vehicle diagnostics and analysis along with universal TPMS solutions.

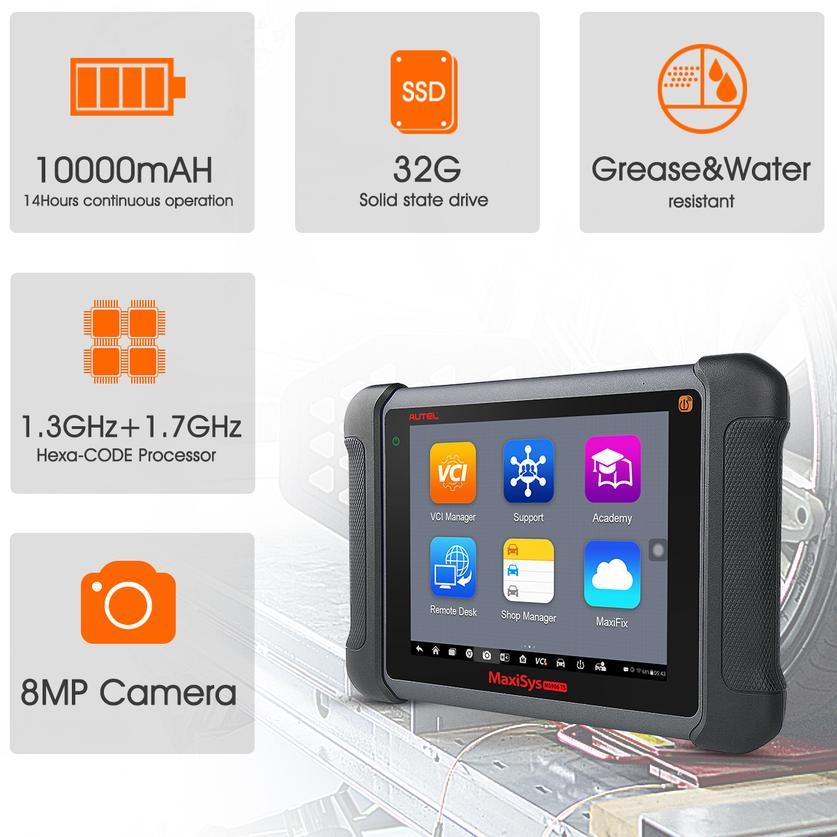

8” LED touch screen
Quad-core 1.3 GHz processor
Android-based software / Kit Kat OS
8MP camera / 32GB solid state drive
10000 mAh lithium-polymer battery

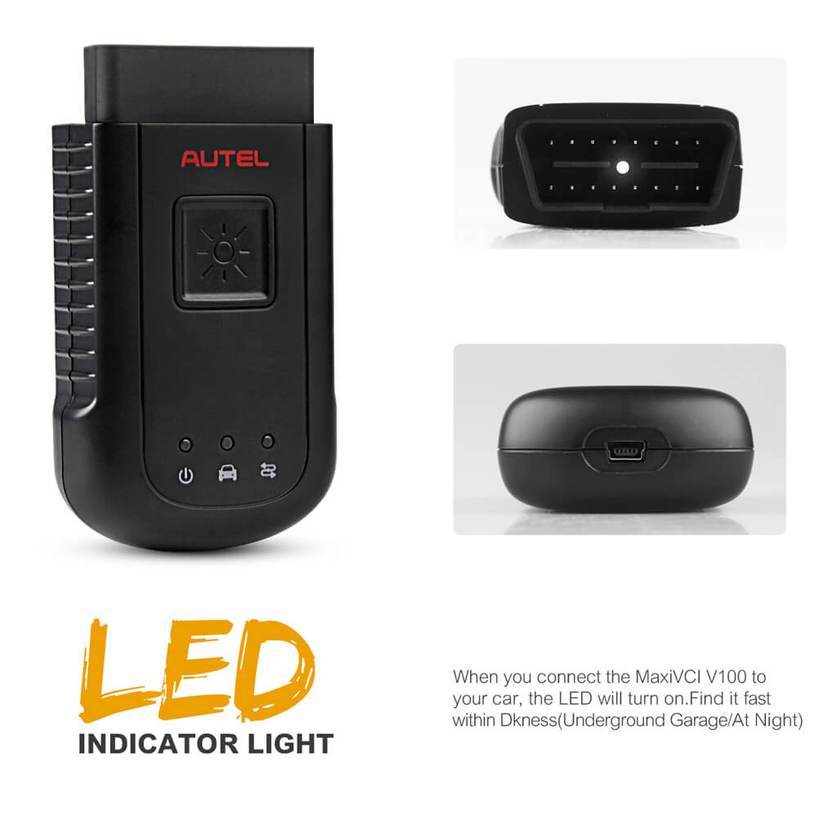

Wireless Bluetooth OBDII connector MaxiVCI V100
Complete OBDII connector kit

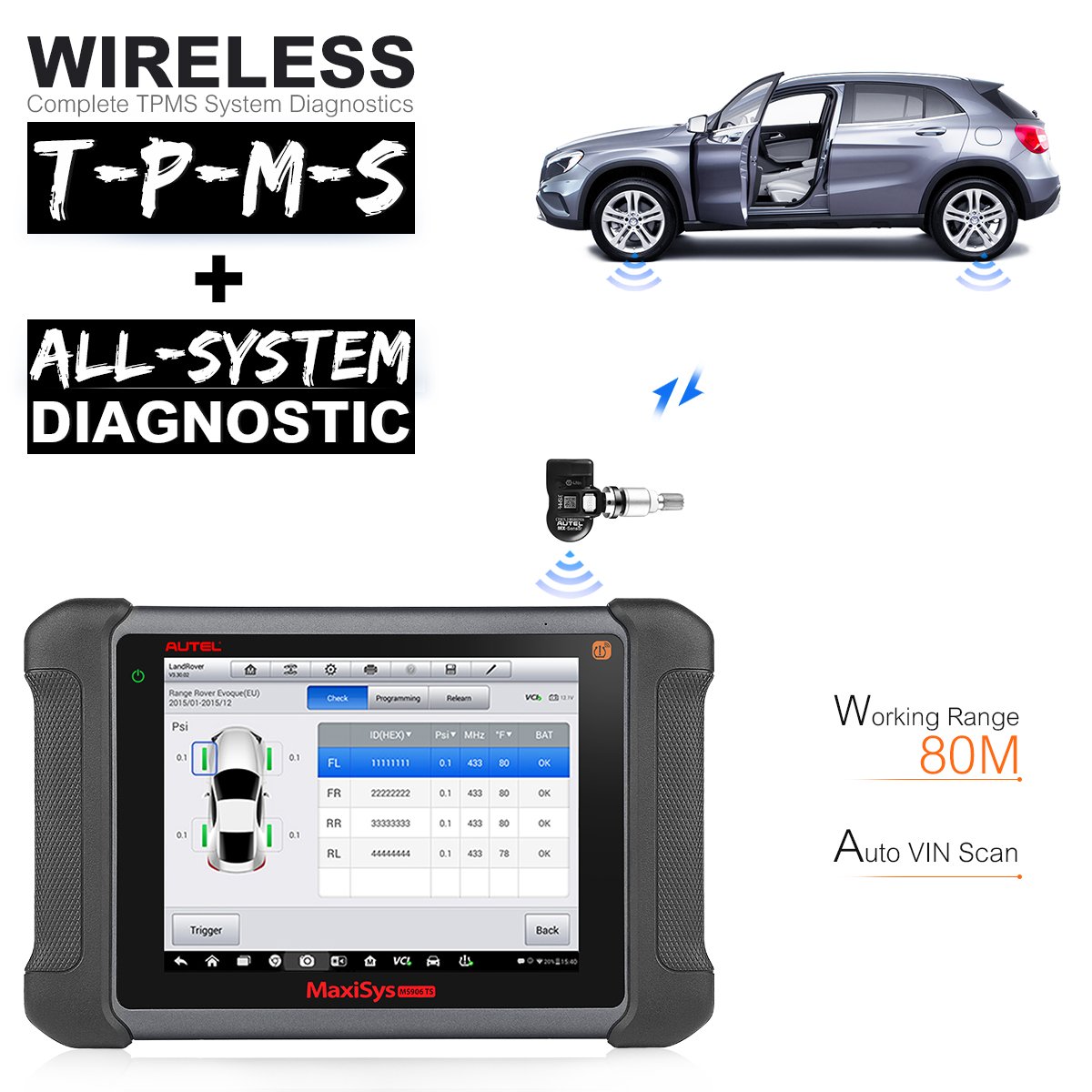

Autel MS906TS diagnostic scanner comes with comprehensive TPMS and OBDII diagnostic functions and able to diagnose the newest models up to 2021. It is loaded with all TPMS functions to activate all known OEM TPMS sensors, view sensor data, program Autel MX-Sensors, and perform TPMS relearn and diagnostics.

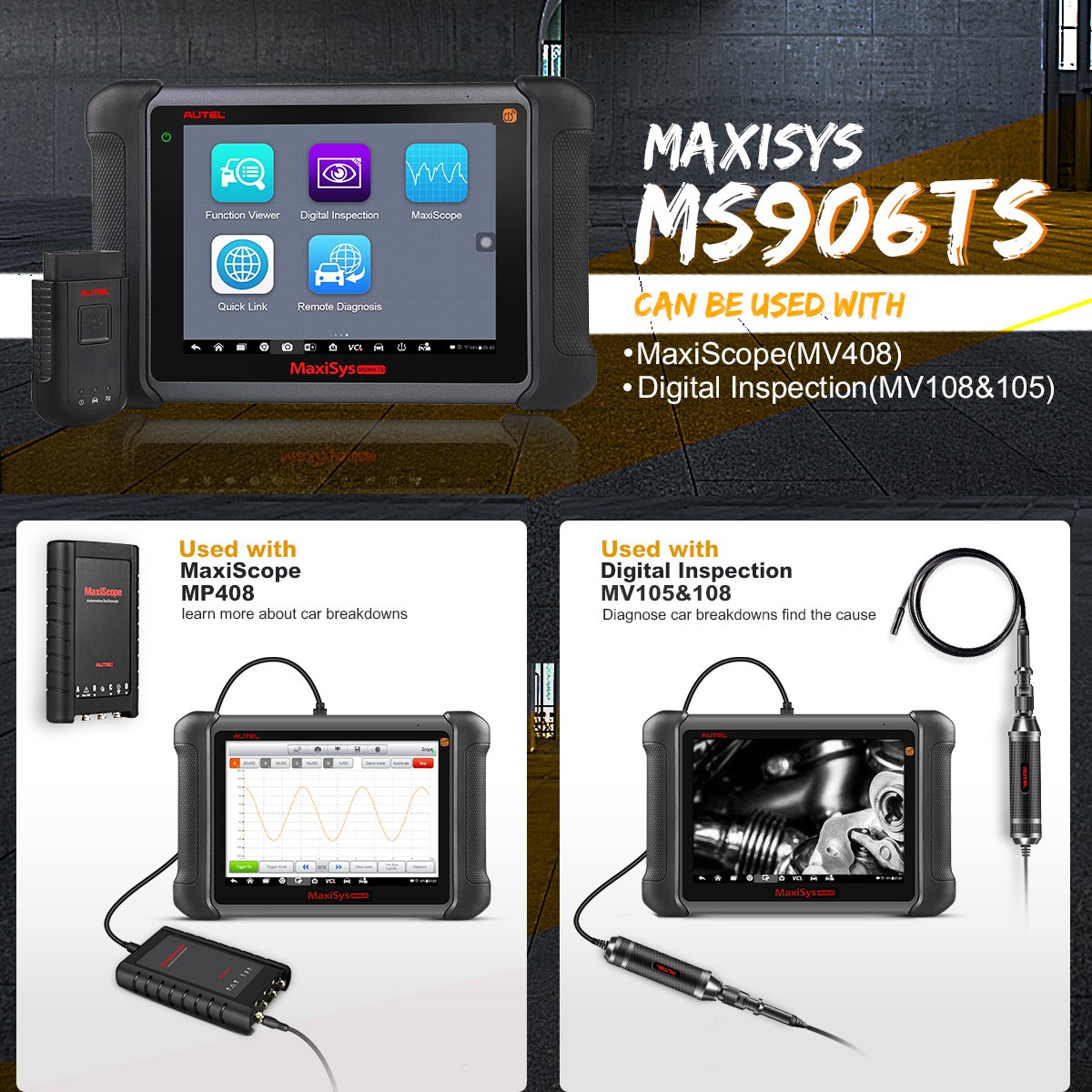

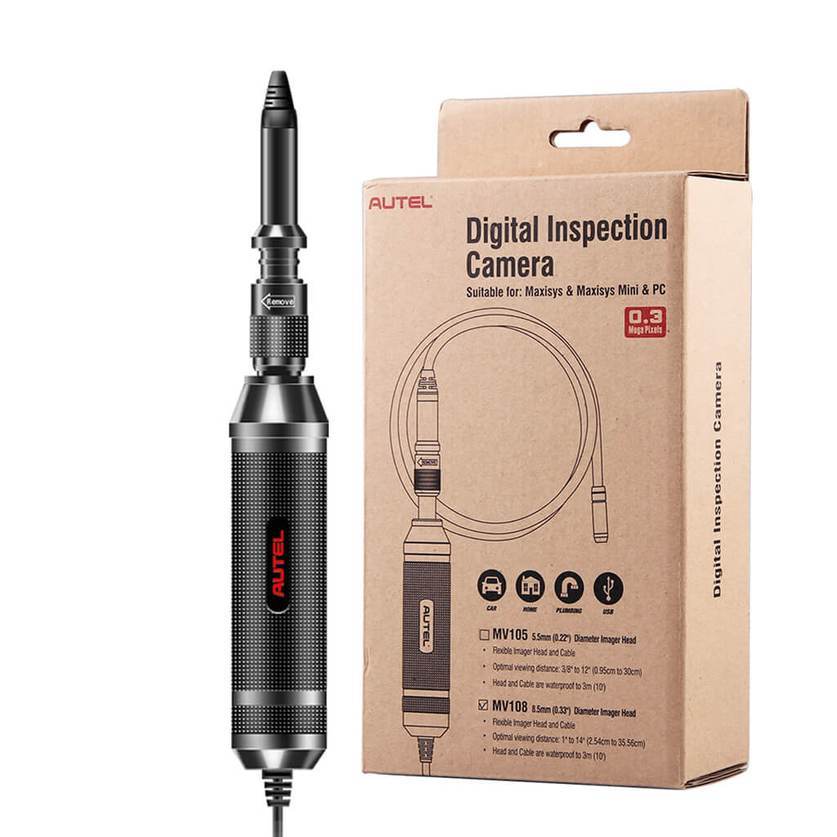

The MS906TS TPMS Tool has the ability to record digital images and videos. Using the diagnostic tool in conjunction with MP408 oscilloscope or MV105 inspection camera will provide greater insight into the interior of the vehicle, expanding the diagnostic capabilities of the device and facilitating your quick inspection.
| Operating System: | Android™ 4.4.2, KitKat |
| Processor: | Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15) |
| Memory: | 2 GB RAM & 32 GB ROM |
| Display: | 8.0" LED capacitive touch screen with 1024x768P resolution |
| Connectivity: | Wi-Fi (802.11 b/g/n); USB: 2.0; Mini USB 2.0; Wireless BT V2.1+EDR Class1; HDMI 1.4a; SD Card (support up to 32 GB) |
| Camera (rear): | Rear-facing, 8.0 Megapixel, AF with Flashlight |
| Sensors; | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output: | • Microphone • Single Speaker • 3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery: | 11000 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply |
| Input Voltage: | 12 V (9-35 V) |
| Power Consumption: | 5 W |
| Operating Temp.: | -10 to 55°C (14 to 131°F) |
| Storage Temp.: | -20 to 70°C (-4 to 158°F) |
| Housing: | Rubberized outer protection and rugged internal housing |
| Dimensions (W x H x D): | 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”) |
| Weight | NW: 1.10 kg (2.42 lb.) |
