Home > TOPDON > Topdon Phoenix Scope

1/1

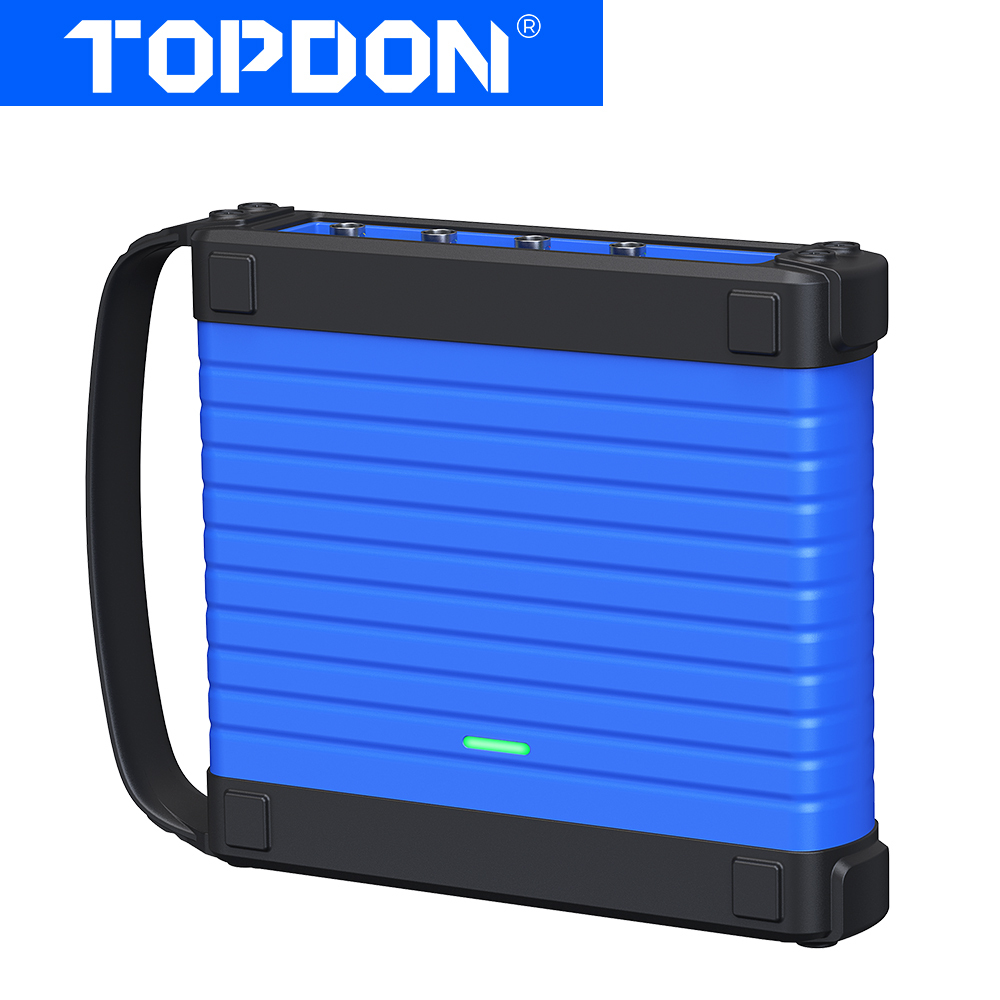

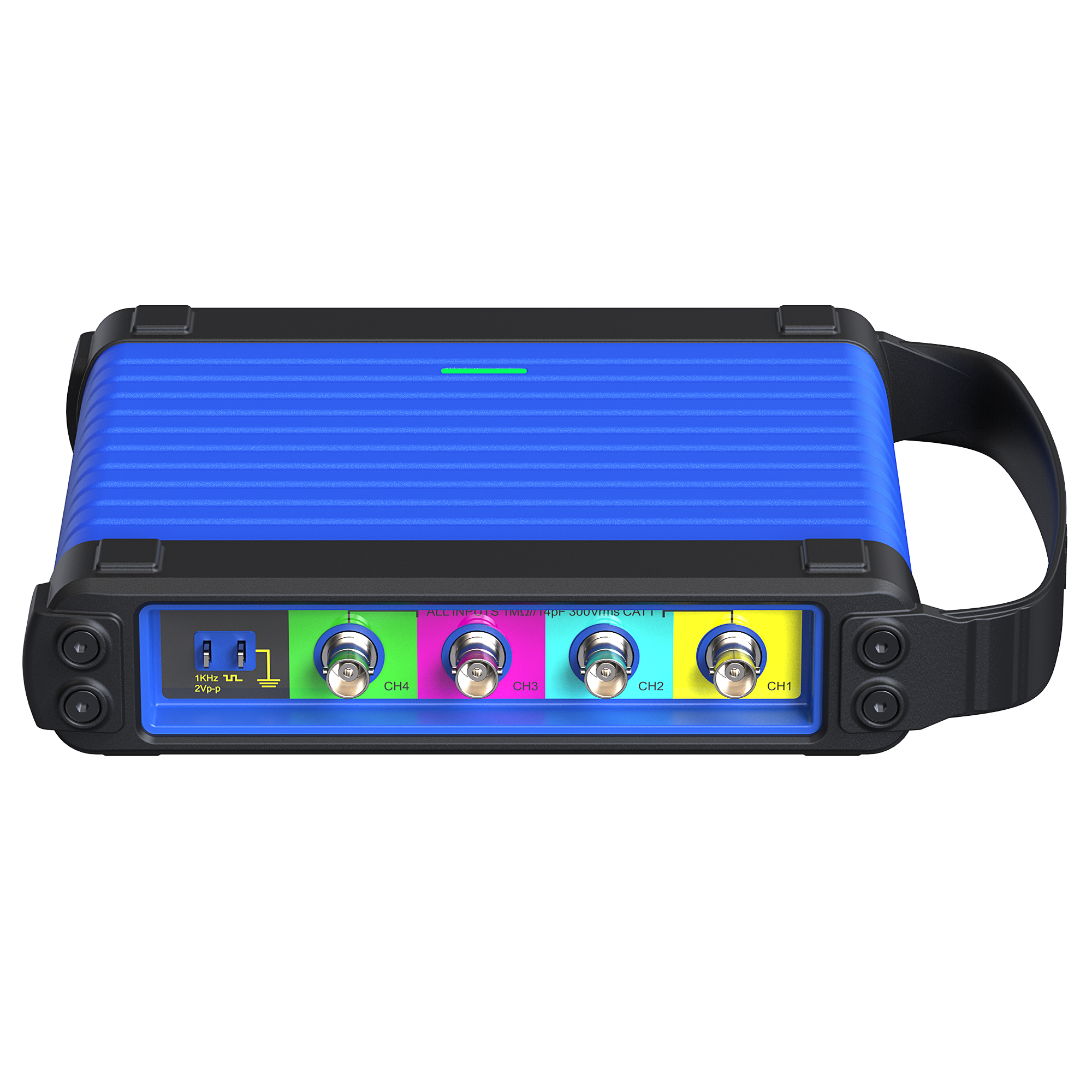

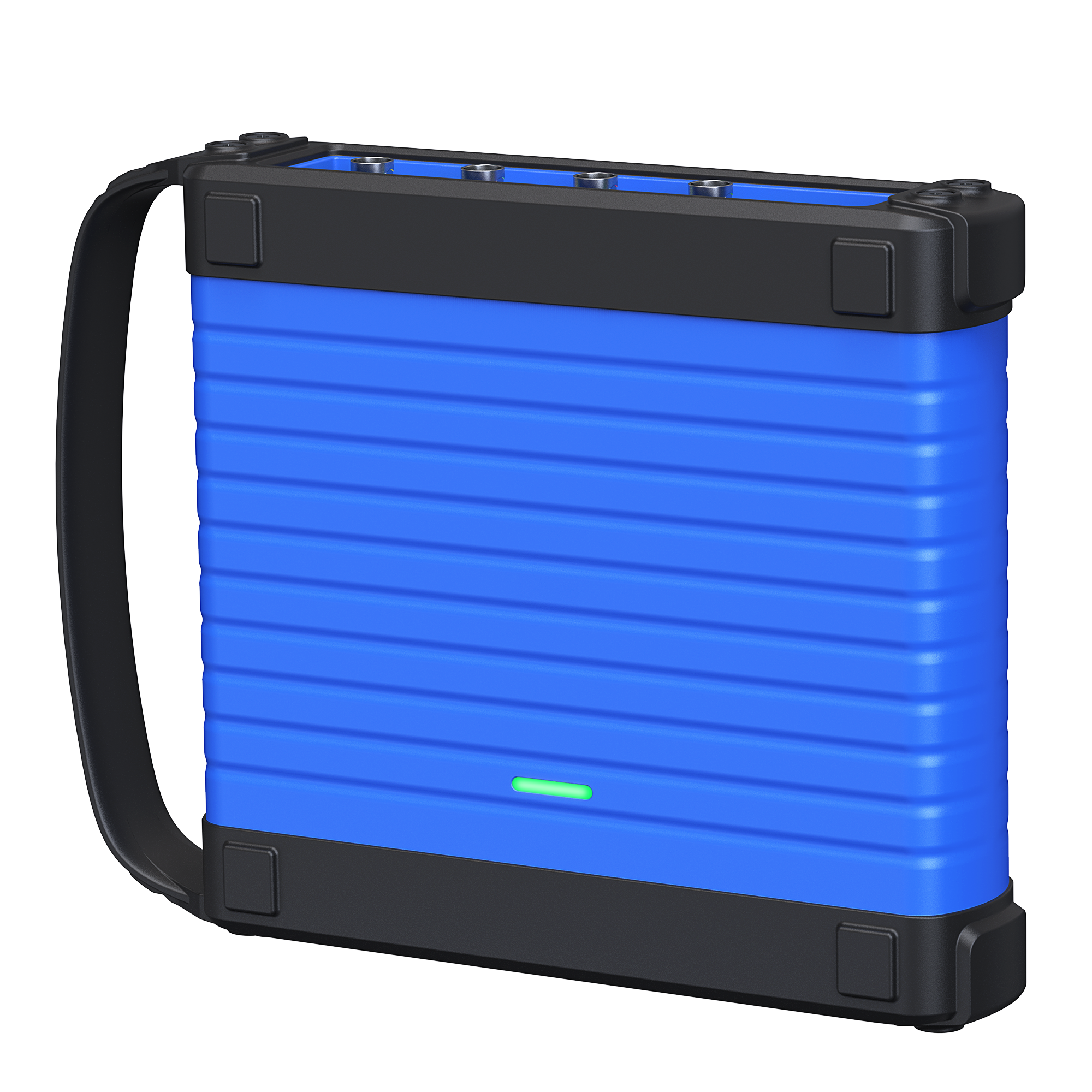

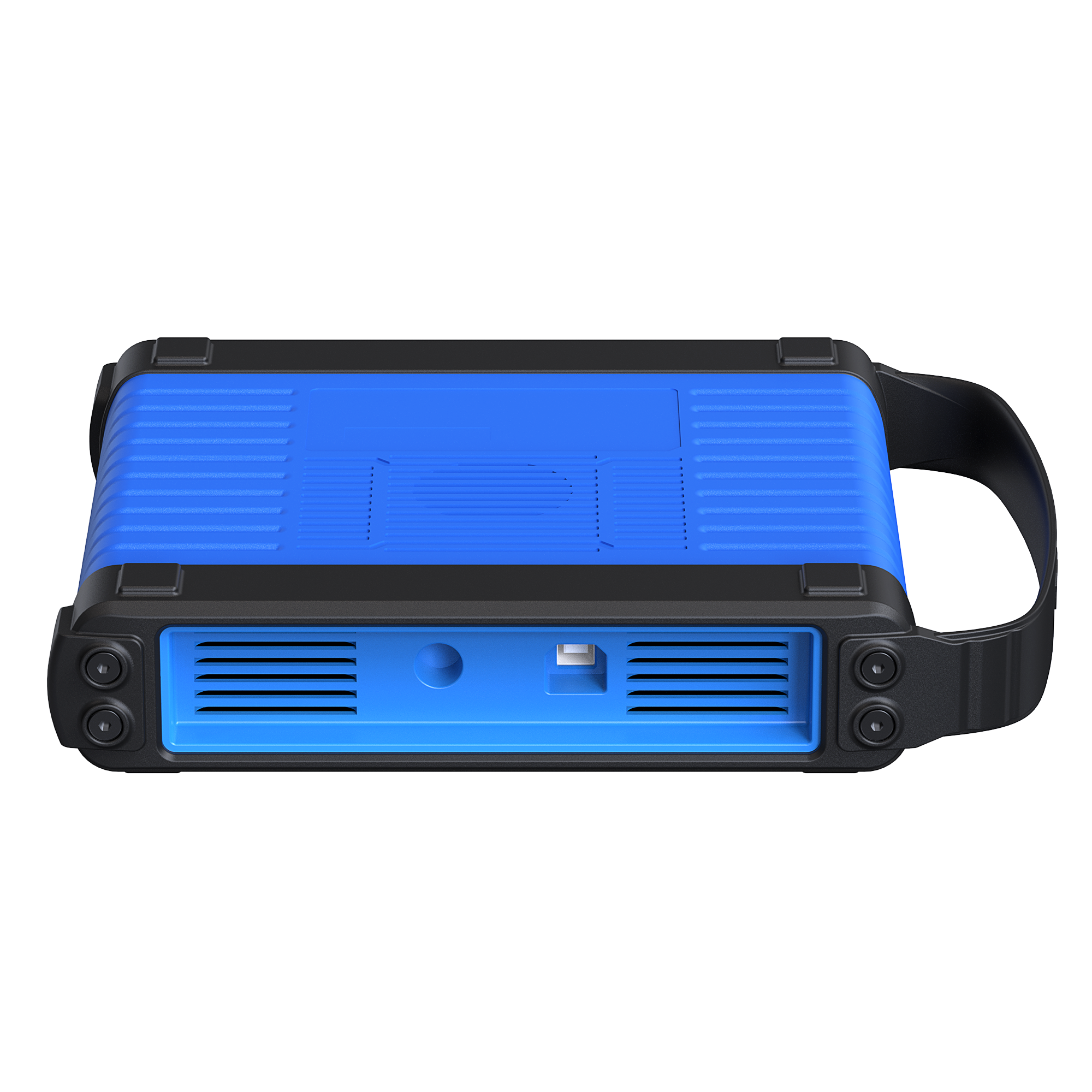

Topdon Phoenix Scope

Name: Topdon Phoenix Scope
Brand: AUTODIAGSALES
Price: 650 USD
Availability: InStock

5.0 (8)

17 Sold

$650.00 ~~$799.00~~

Phoenix Scope oscilloscope allows technicians to quickly diagnose issues with automotive electronics and wiring.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (23)

1/1

Description
Certificate
Shipping Information

Phoenix Scope

Compatible with Phoenix Lite2, Phoenix Plus, Phoenix Elite, Phoenix Smart, Phoenix Max

Phoenix Scope allows technicians to quickly diagnose issues with automotive electronics and wiring. It captures circuit signals swiftly and displays signal waveforms at a slower speed for simultaneous observation and analysis. Furthermore, it can record tested signal waveforms and replay them for further observation and fault analysis.

23 Types of Automatic Measurements: Displayed in one screen and clear at a glance, this feature supports one-tap selection and clearing, eliminating the tediousness of flipping pages and searching, making automatic measurements useful and convenient.
Powerful Trigger Function: This feature supports edge, pulse width, and other triggers. Simple and intuitive setup with quick trigger source switching makes the most difficult parts of using the scope extremely easy.
High Memory Depth: With a memory depth of up to 50M combined with zoom technology, the Phoenix Scope allows both global and detail to be fully displayed. The upper area can be browsed globally, and the lower area can be searched for details making debugging more than twice as fast.
Special Fast Storage Function: Compared with ordinary scopes which require 3 to 5 steps, the Phoenix Scope can save waveforms with just one tap, reducing save time by more than 70%.
Convenient Cursor Operation: You can open horizontal and vertical cursors separately with one tap. Each cursor can be dragged independently. Cursor tracking is achieved directly through a simple highlight tap, increasing overall efficiency by more than 80%.
Soft Keyboard Input: When inputting names and characters, ordinary scopes can only use the knob to select characters one by one. The Phoenix Scope supports soft keyboard input, which improves efficiency by more than 90%.
Customizable and Loadable System Settings: Various preferred system settings are available and can be saved as configuration files. This allows you to load configuration files directly to view them according to your preferences without having to set them repeatedly.
Waveform Recording and Playback: The waveform can be recorded and saved in a specified format, which can be directly recalled later and displayed as the reference waveform of the corresponding channel.
Supports Mathematical Operations on Waveforms: This feature supports addition, subtraction, multiplication, and division calculations of two channel waveforms in addition to Fast Fourier Transform.
Supports a Variety of Automotive Tests: This feature supports circuit tests, sensor tests, actuator tests, ignition tests, communication tests, combination tests, etc. Various parameters and specific connection methods are preset for each kind of test.

Topdon Authorized Dealer
Autodiagsales.com is Topdon Authorized Dealer for United States and Australia. Products Created by Topdon ® Innovation & Quality You Can Trust.

Enter www.topdon.com, click the authorized dealer at the bottom, you can find us

United states

Australia

Free Worldwide Shipping

Where is my order shipped from?

We provide worldwide free shipping! And all orders will be shipped from the warehouse nearest to you and carried by DHL, FedEx, UPS, USPS, DPD, or Royal Mail according your address. Following is the location where our warehouse located at and estimate develiry date for reference.

Your Address	Shipping Location	Delivery Estimated
United States	NJ, US	3-5 Days
Europe	Germany	5-7 Days
United Kingdom	Leicestershire, UK	5-7 Days
Australia	Sydney, AU	7- 10 Days
Other Countries	HongKong	7-15 Days

Order Processing Time

All our order are processed and shipped out within 24 hours (excluding weekends and holidays).
After the order is shipped out and received by the carrier, we will update you by email with a Track-and-Trace code with which you can follow your package and see the remaining shipping time.
Please allow 24-48 hours for the tracking information to update.

Shipping Address Change

If you would like to change the shipping address for your order, please contact us by email with the new shipping address. Once the order is shipped, we can not alter the shipping address anymore.
International Shipping Duties & Taxes
- For international order. If the items don't ship from your local warehouse in your country/ region, you, the customer, will be responsible for the import duty, but please don't worry, We will decrease the declared value to reduce your import tax.

Returns, Refunds, and Exchanges

We provide a 15-Day Returns Service after delivery, If you are not satisfied with the item you bought or change your mind, please contact us for a return shipping address and ship all the items back to us for a refund in their original package.
For more details of the return policy, please visit our Return Policy
