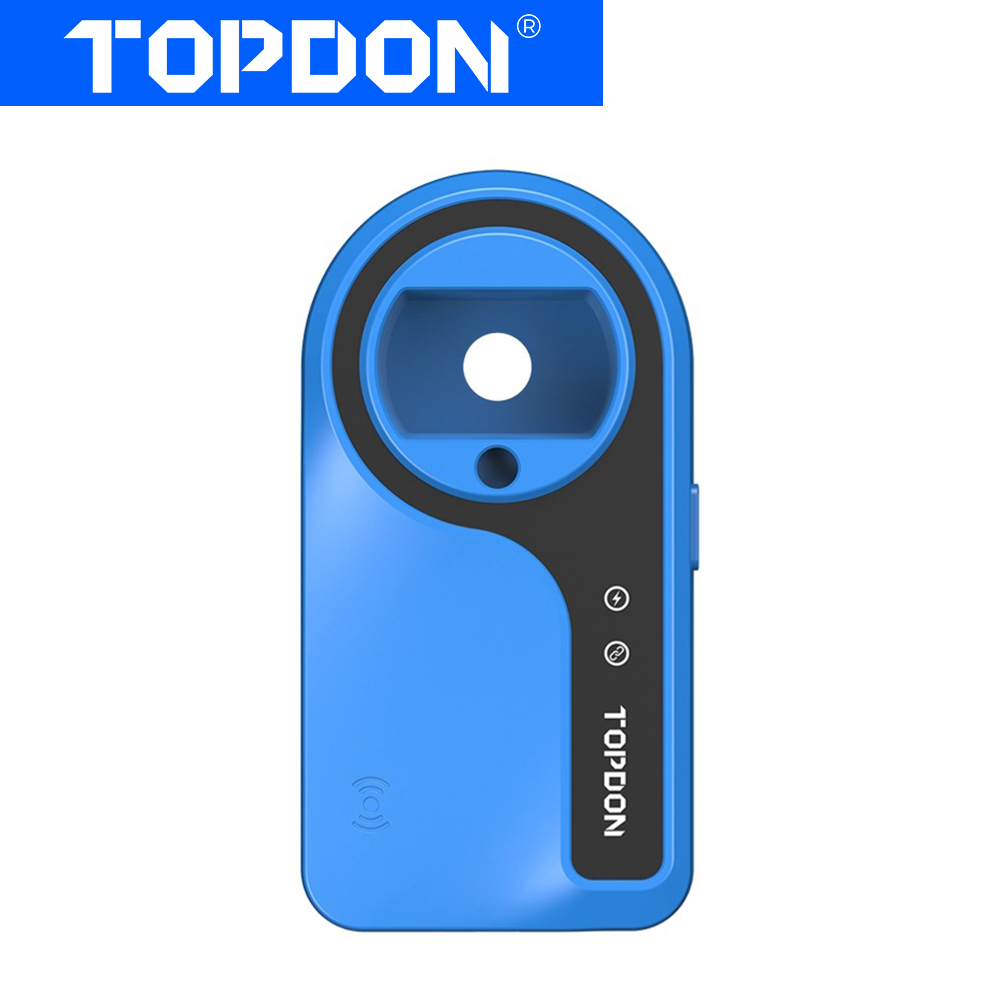

Topdon T-Darts

T-Darts is compatible with Topscan Pro, T-Ninja Pro and Ultradiag

With the T-Darts, technicians and key specialists unlock a new dimension of analysis and programming. The T-Ninja Pro supports chip recognition and frequency detection when used together with the T-Darts, a TOPDON-designed Transponder & Remote Tester Tool, enables users to perform key programming for mainstream automobiles available on the global market. Get excellent coverage with the T-Dart, covering over 100 different transponder chips and RFID chips.

The T-Darts also features outstanding practicality, with bluetooth connectivity, lengthened RFID detection range, and the option to run on four AAA batteries. Pairing the T-Darts and T-Ninja Pro gives professionals all the versatility and capabilities they would need to turn profits and maximize efficiency.

The T-Darts, developed by TOPDON Technology, is an RFID tester that offers various functionality, including Transponder Recognition, Frequency Detection, and Test IMMO / PKE Coil. TOPDON’s self-developed RFID base station technology has greatly contributed to the system's flexibility and stability, further enhancing the advanced capabilities of the T-Darts.

• T-Darts allows either USB or Battery powered function
• T-Darts Supports Transponder Chips
• Supports 100+ Brand Chips
• T-Darts identifies Radio Frequency of each Vehicle Remote (300-320Mhz, 430-434Mhz, 868Mhz, 902-915Mhz)
• Can connect directly to phones
• BlueTooth Connectivity
• Can Incorporate 4 Triple A Batteries

Transponder Recognition

Able to recognize all mainstream transponders (more than 100 transponders supported)

Frequency Detection

300~320Mhz

430~434Mhz

868Mhz

902~915Mhz

Standard detection range(1~10cm)

Long-distance detection range (≥100cm)

Test IMMO/PKE Coil

IMMO Coil：

Includes emergency key slot coil, mechanical key ignition coil.

PKE Coil：

Located in the door handles or trunk door of vehicles with Passive Keyless Entry (PKE) systems.

Supports 125kHz and 134kHz low frequency bands


By simply connecting the T-Darts to the TopScan app via Bluetooth, you can easily begin performing the functions. Note that the Test IMMO / PKE Coil function can only be accessed through the TopScan app. The T-Darts can also be used together with the T-Ninja Pro to provide functions such as Transponder Recognition, Frequency Detection, Transponder Generation, and Write Keys via Dump.

T-Darts + TopScan App (Buy TopScan Pro)

Supports transponder identification, covering various key transponder types such as NXP, Megamos, Temic, TI, Silca, JMA, and K-JMD.
Supports frequency detection, covering 300-320MHz, 430-434MHz, 868MHz, and 900-915MHz frequency bands.
Supports IMMO / PKE coil testing，able to test emergency key slot coil, mechanical key ignition coil, and PKE coil (for vehicles with Passive Keyless Entry systems), covering 125kHz and 134kHz frequency bands.

T-Darts + T-Ninja Pro/Ultradiag
Buy T-Ninja Pro
Buy Ultradiag

Supports transponder identification, covering various key transponder types such as NXP, Megamos, Temic, TI, Silca, JMA, and K-JMD.
Supports frequency detection, covering 300-320MHz, 430-434MHz, 868MHz, and 900-915MHz frequency bands.

Supports transponder generating

Supports Key Writing via Dump Options

Dimensions: 139.5*72*28.2 mm (5.5*2.83*1.1 in.)

Weight:

USB Port: Type-C

Frequency Detection: 300-320; 430-434; 868, 902-915 Mhz

Standard Detection Range: 1-10 cm

Long Distance Detection Range: >101 cm
