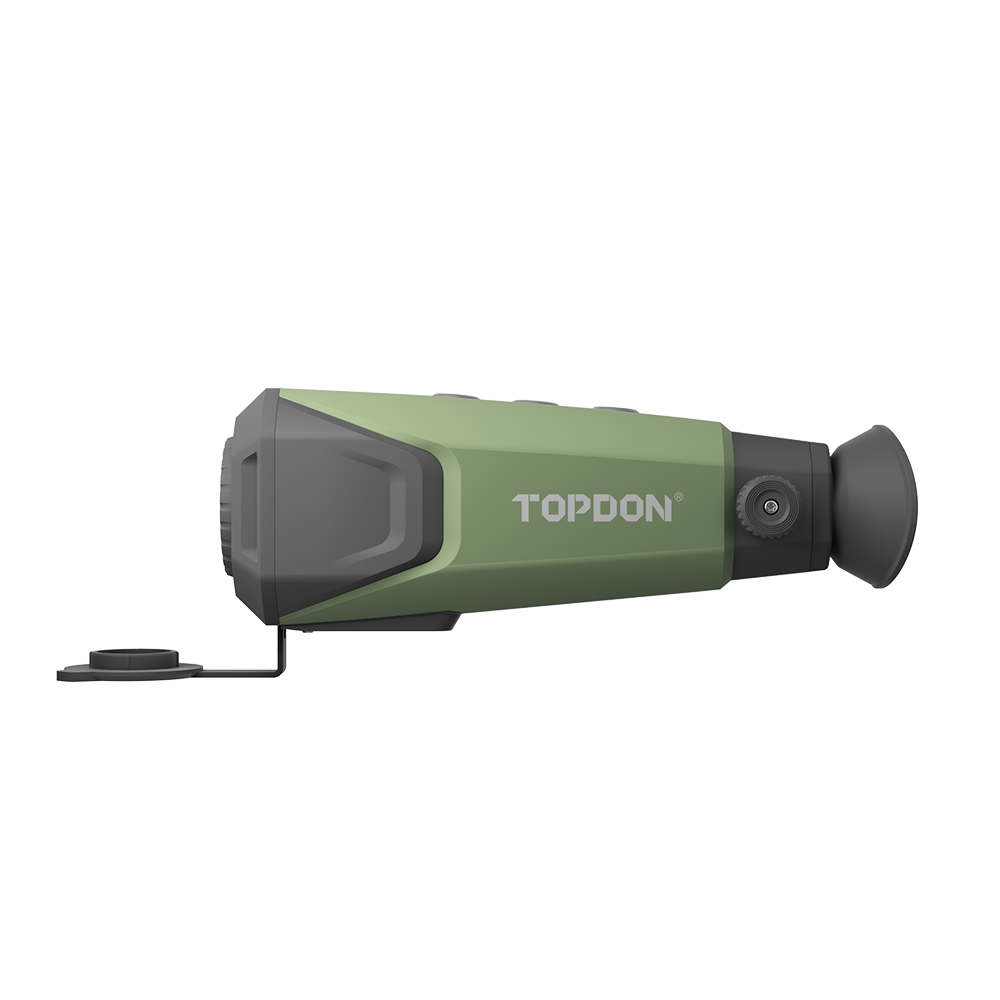

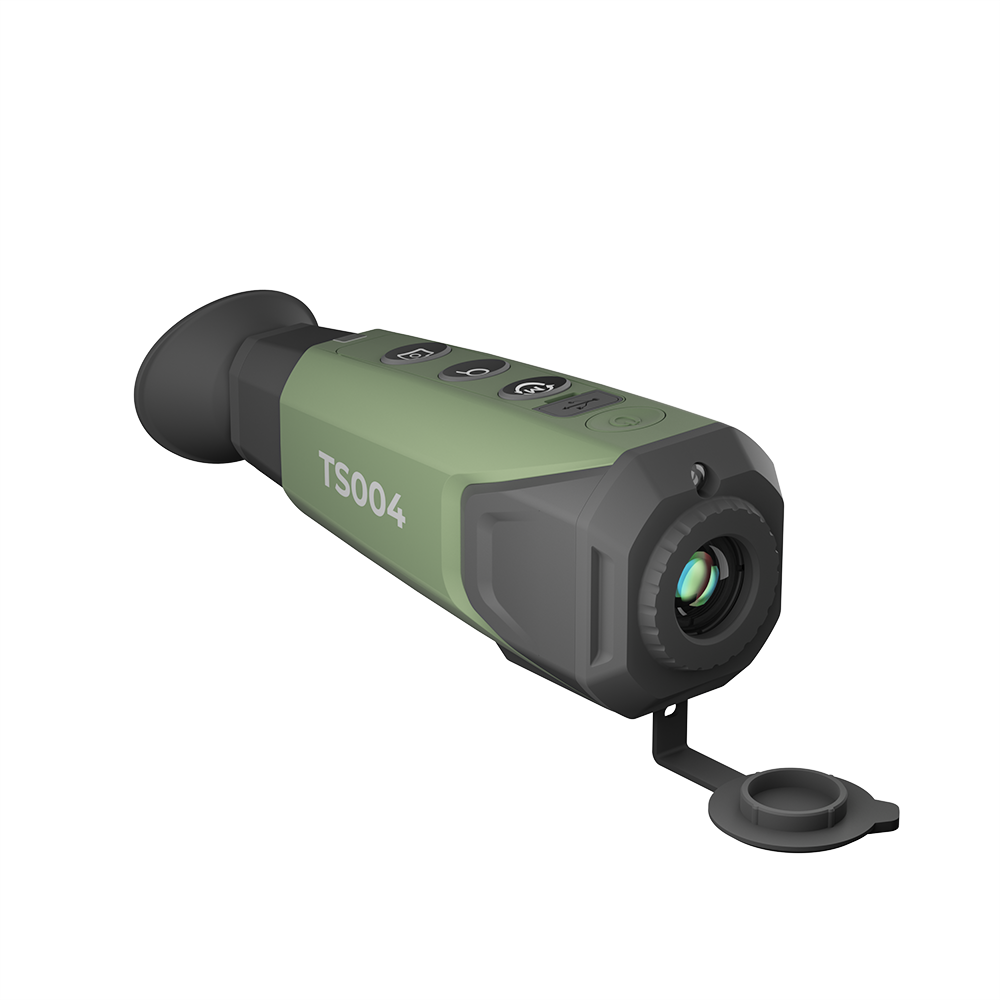

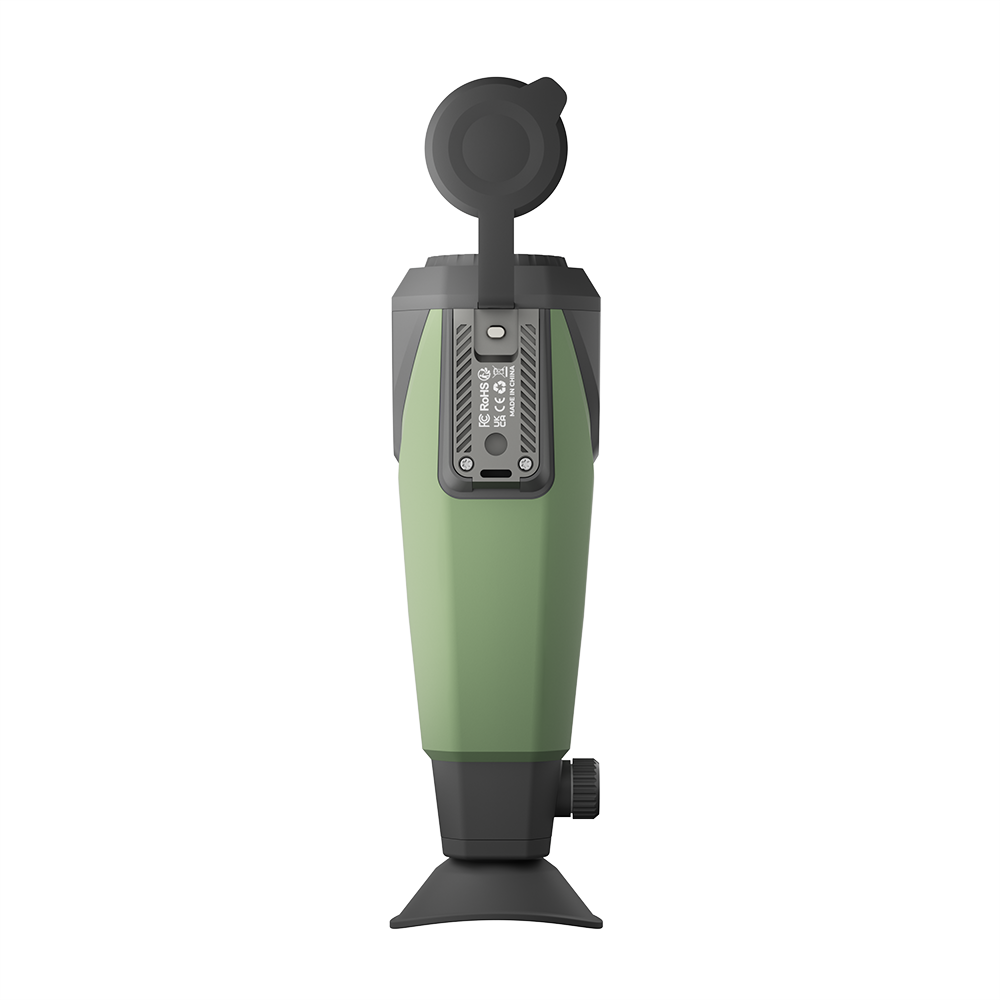

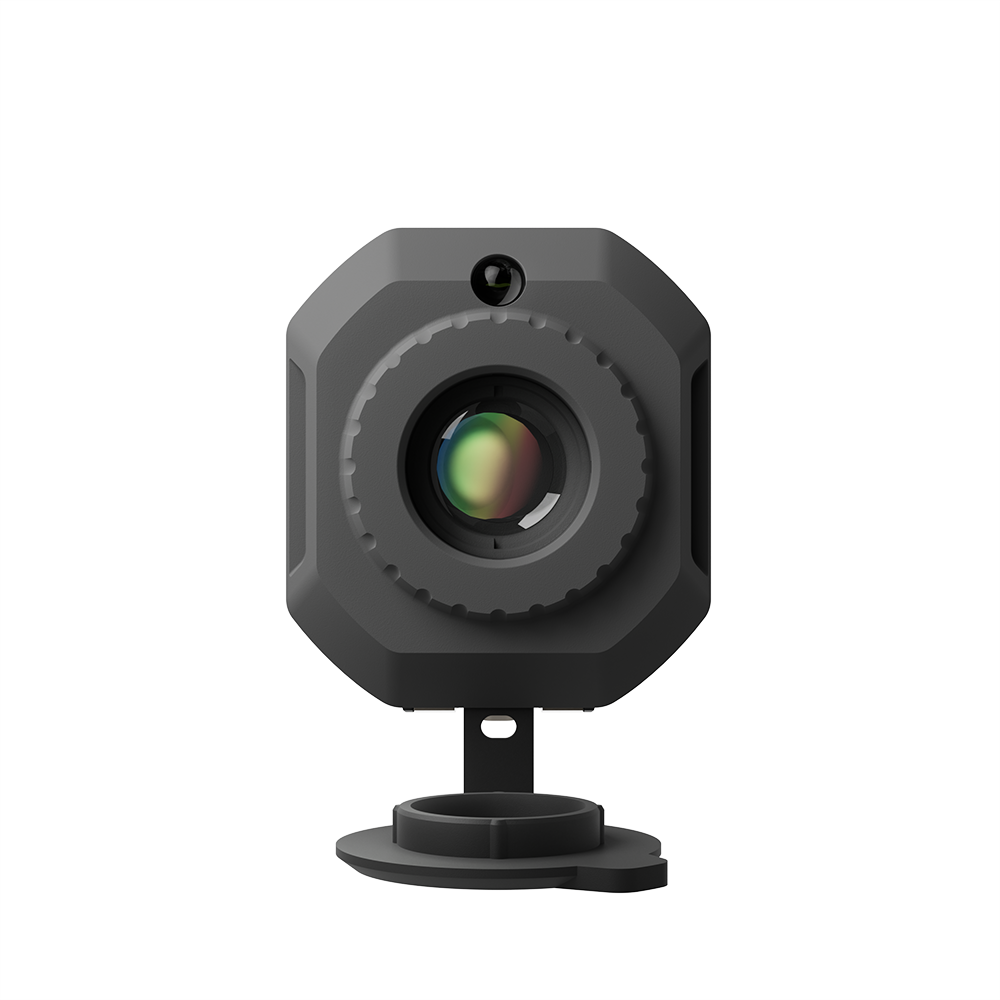

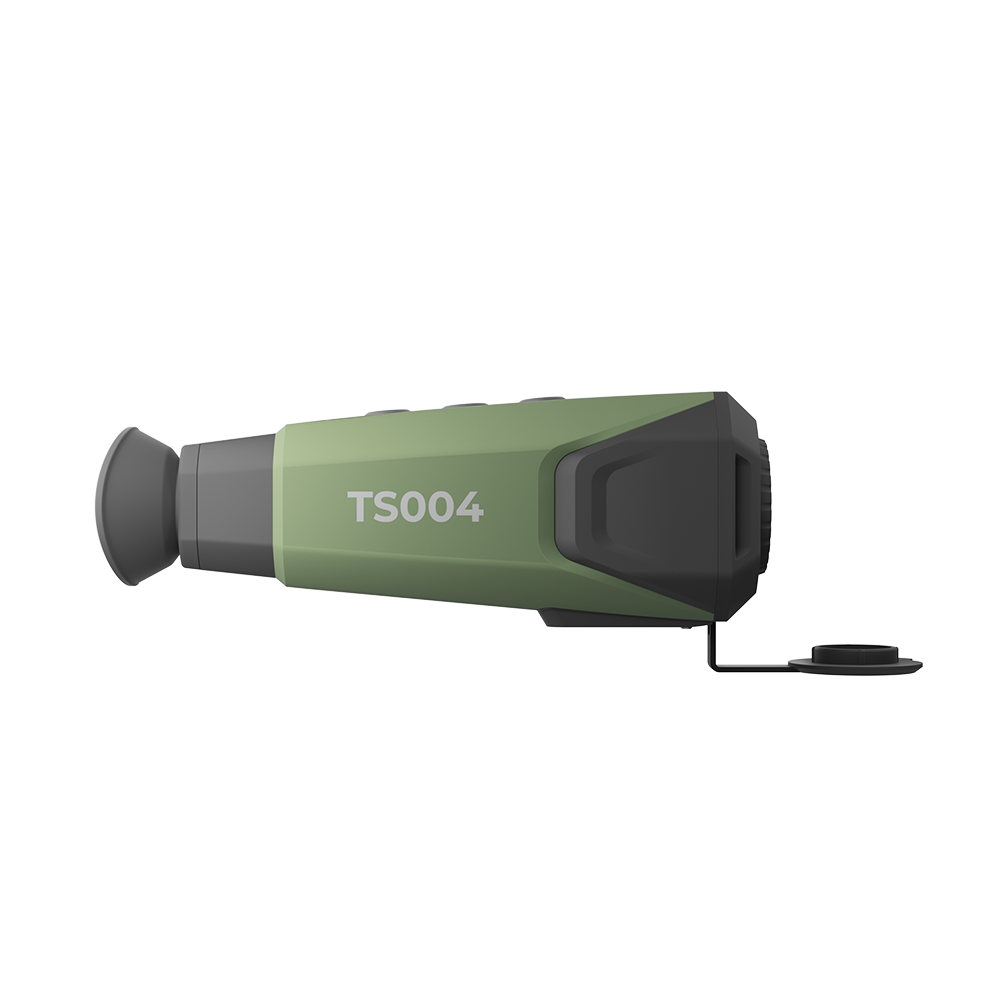

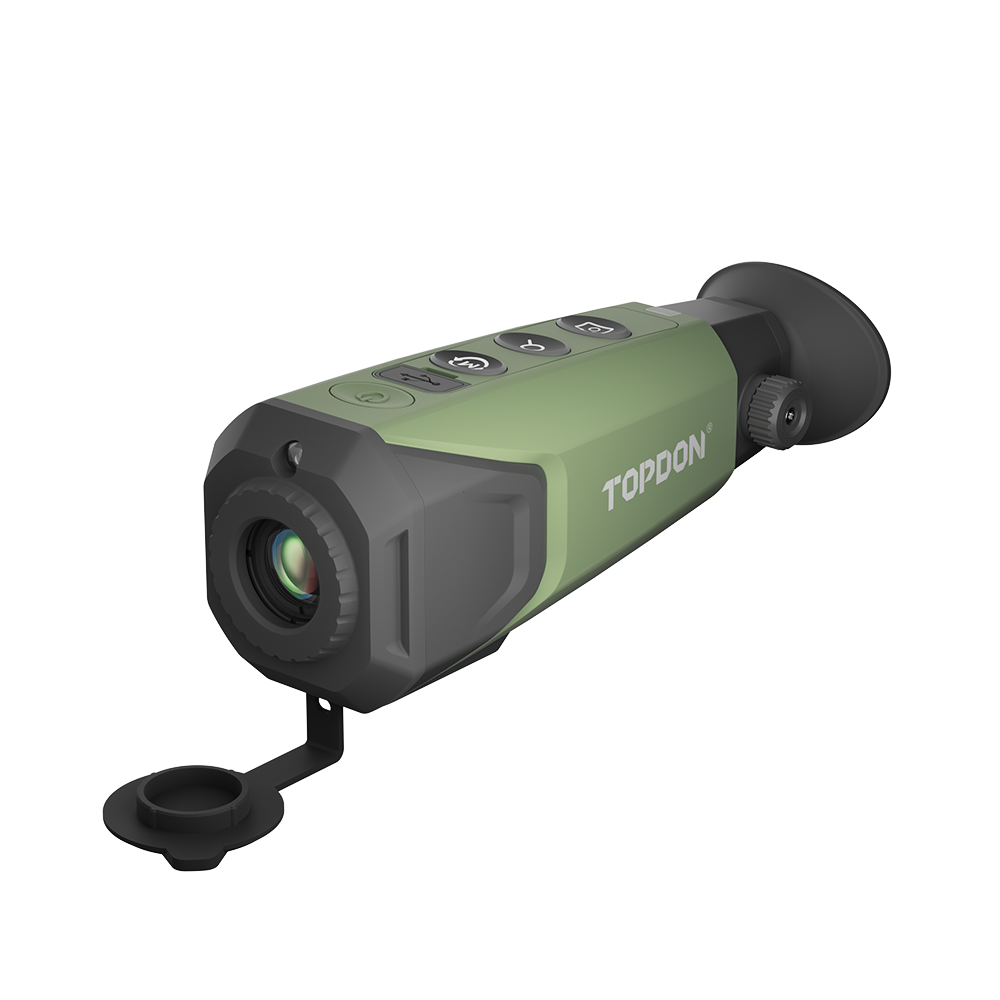

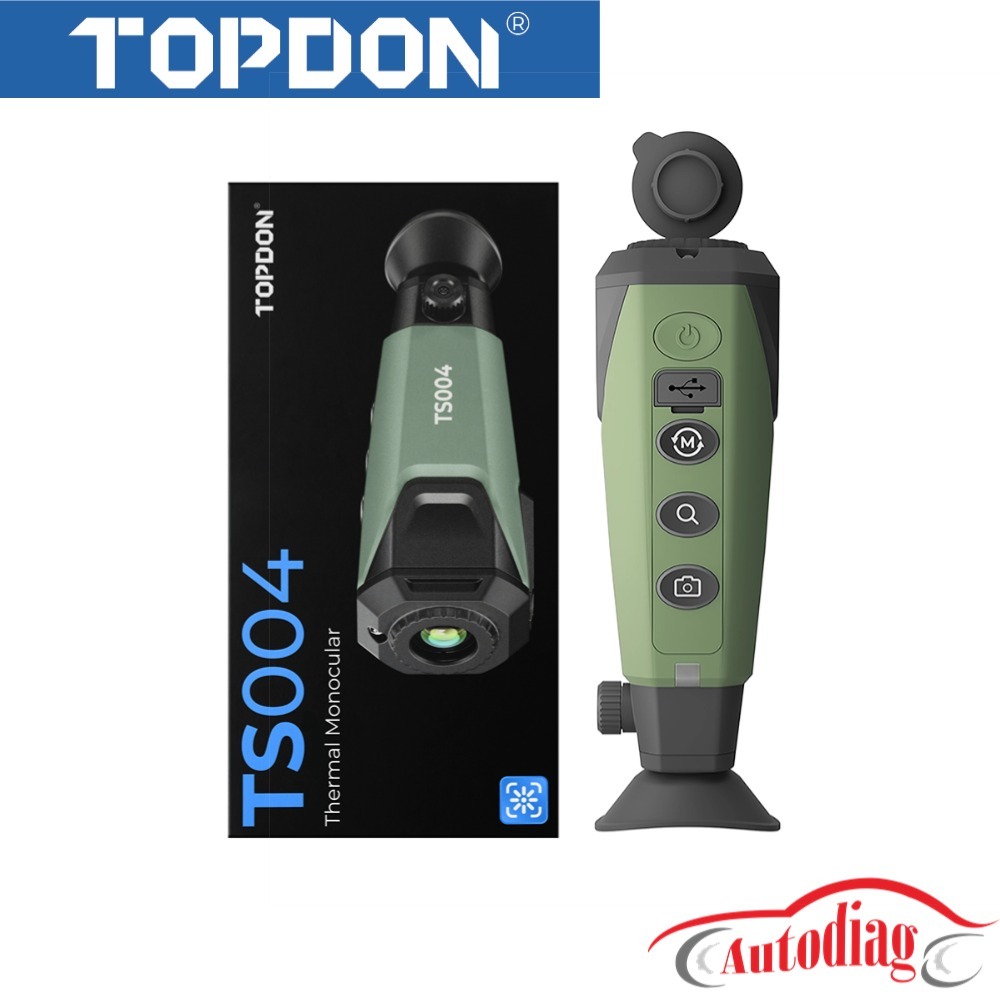

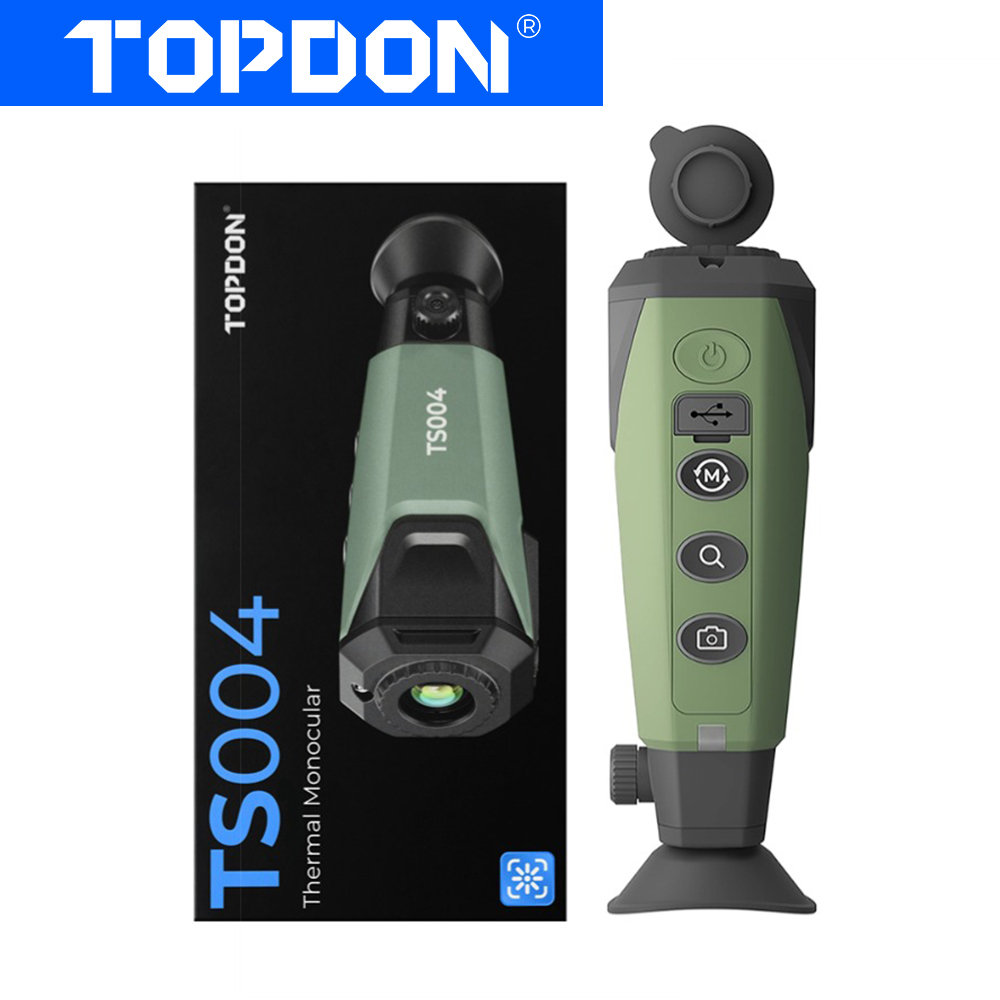

TOPDON TS004

TOPDON Thermal Imaging Monocular

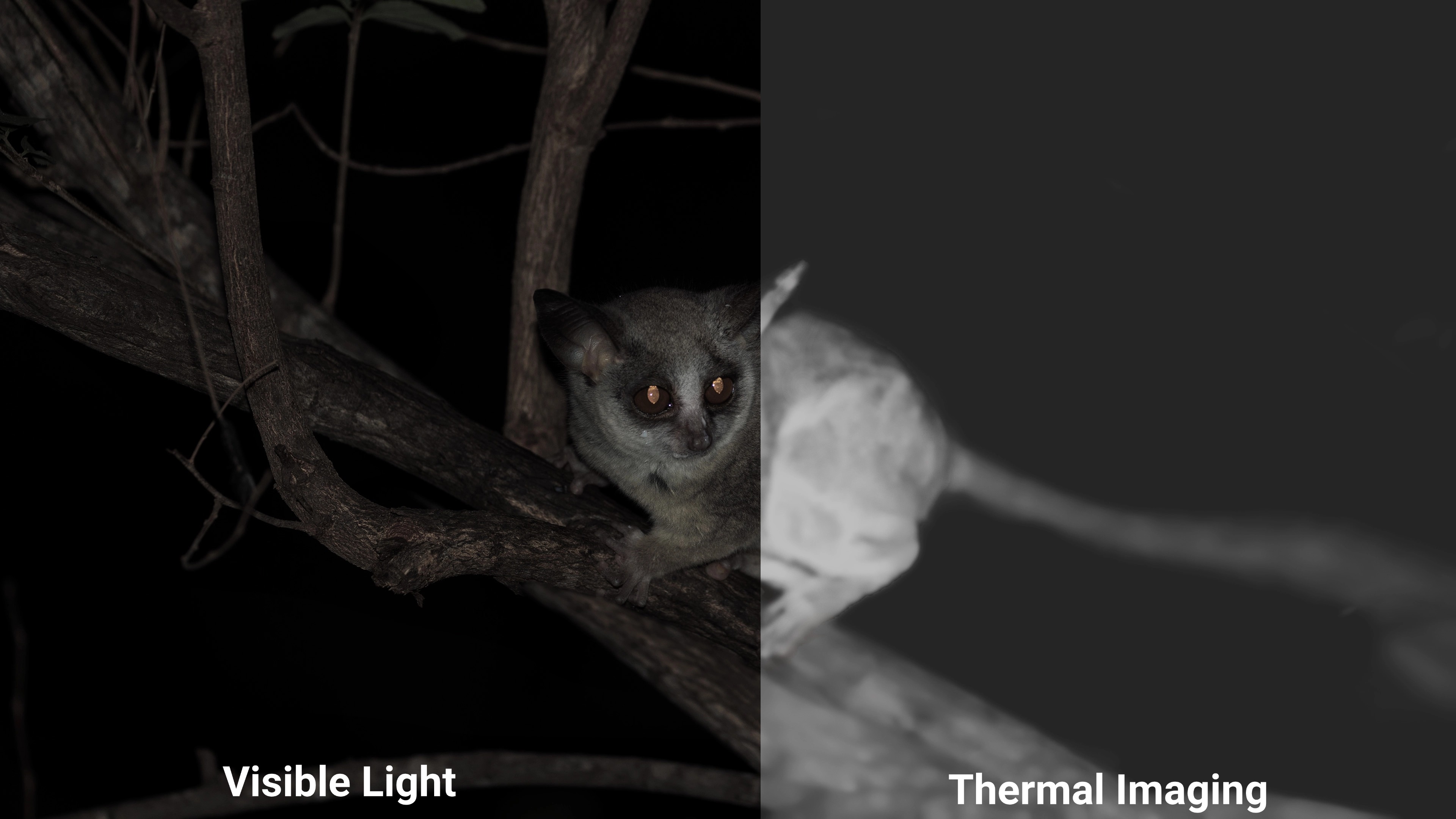

Reveal the Unseen

The thermal monocular goes beyond visible light to deliver clear visuals even in complete darkness or low-light conditions.

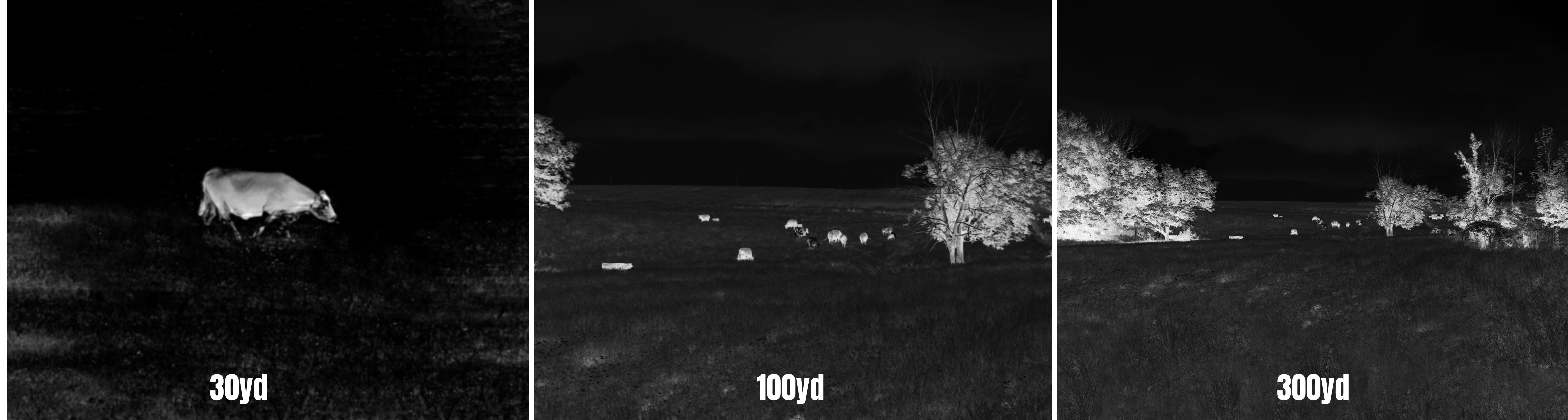

See More, See Farther

The 450yd detection range allows you to spot wildlife from a distance or conduct search and rescue operations in challenging conditions.

Unveil Outdoor Secrets with Clarity

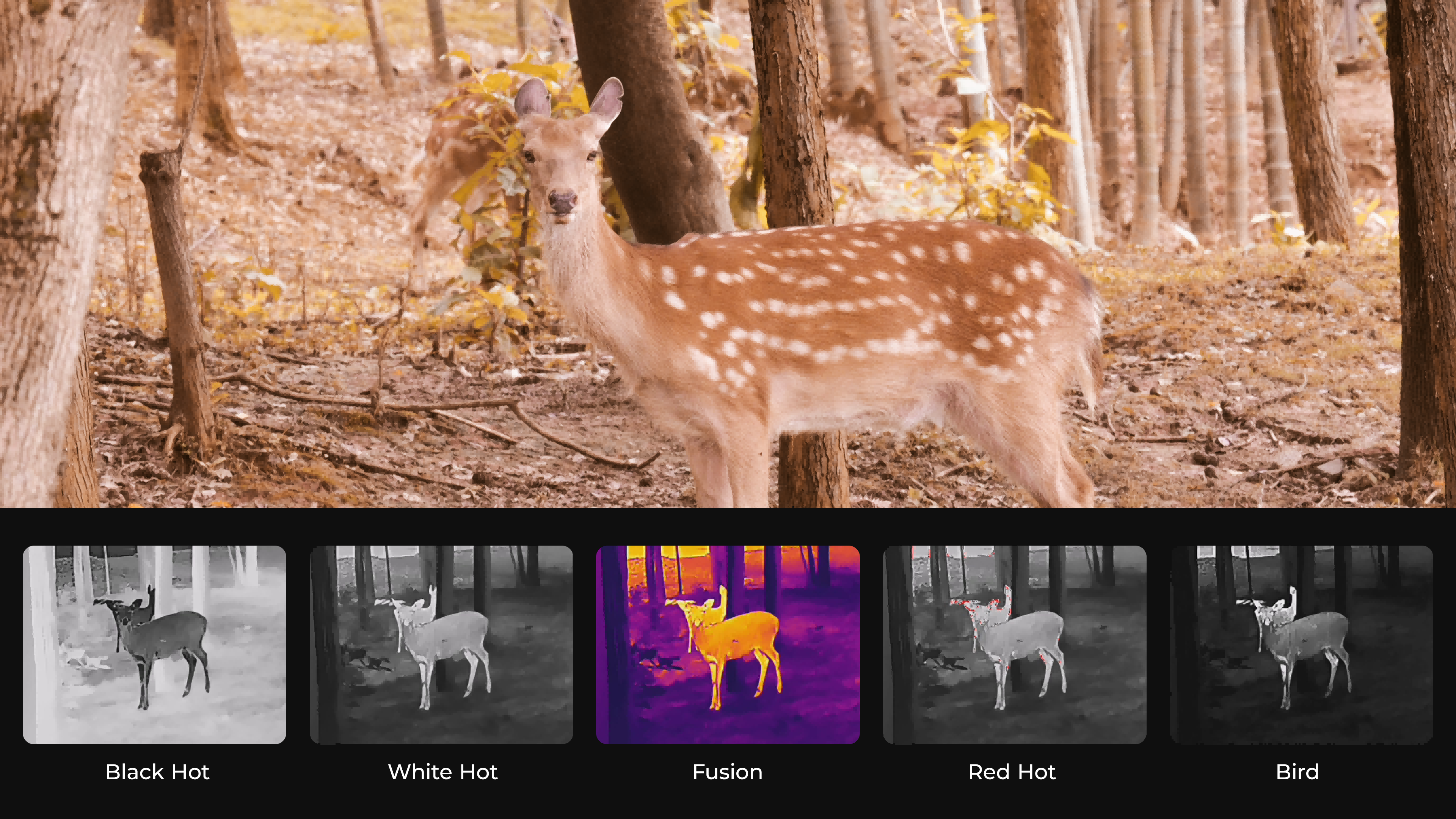

Enter a realm where darkness holds no mysteries. With its 256*192 high resolution and a rapid 50Hz refresh rate, this monocular penetrates darkness, fog, or dense vegetation, presenting vivid thermal images of observed wildlife. Enhanced by five color palettes - Bird, White Hot, Black Hot, Red Hot, Fusion - it aids in swift and accurate object identification.

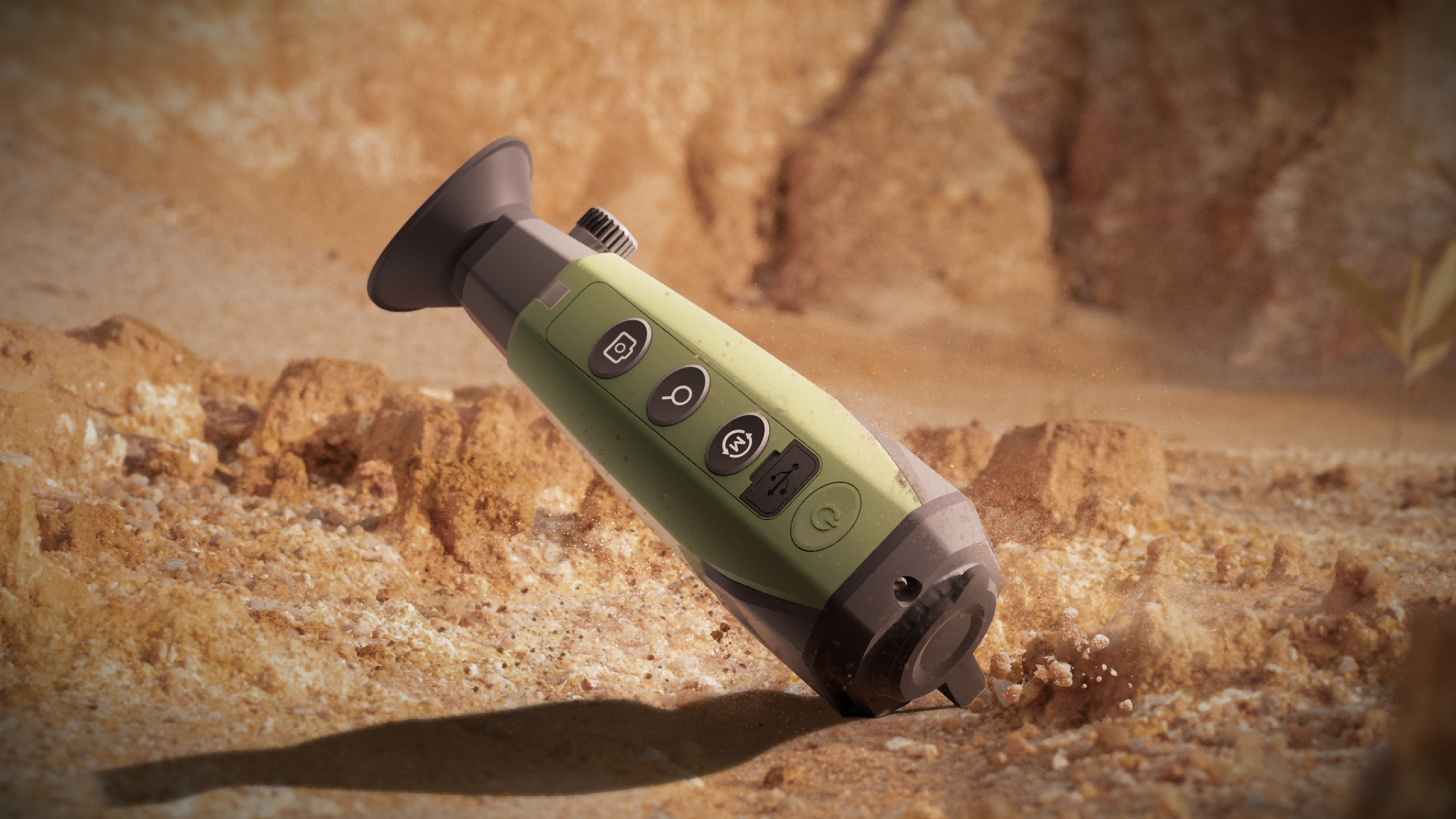

Stand Up to Any Environment

TS004 is engineered to endure whatever Mother Nature throws your way, boasting an IP67 waterproof rating that ensures resilience against heavy rainfall, snow, mud, and other forms of precipitation. With its robust construction, it's your reliable companion for all your outdoor explorations, ready to go anywhere you venture.

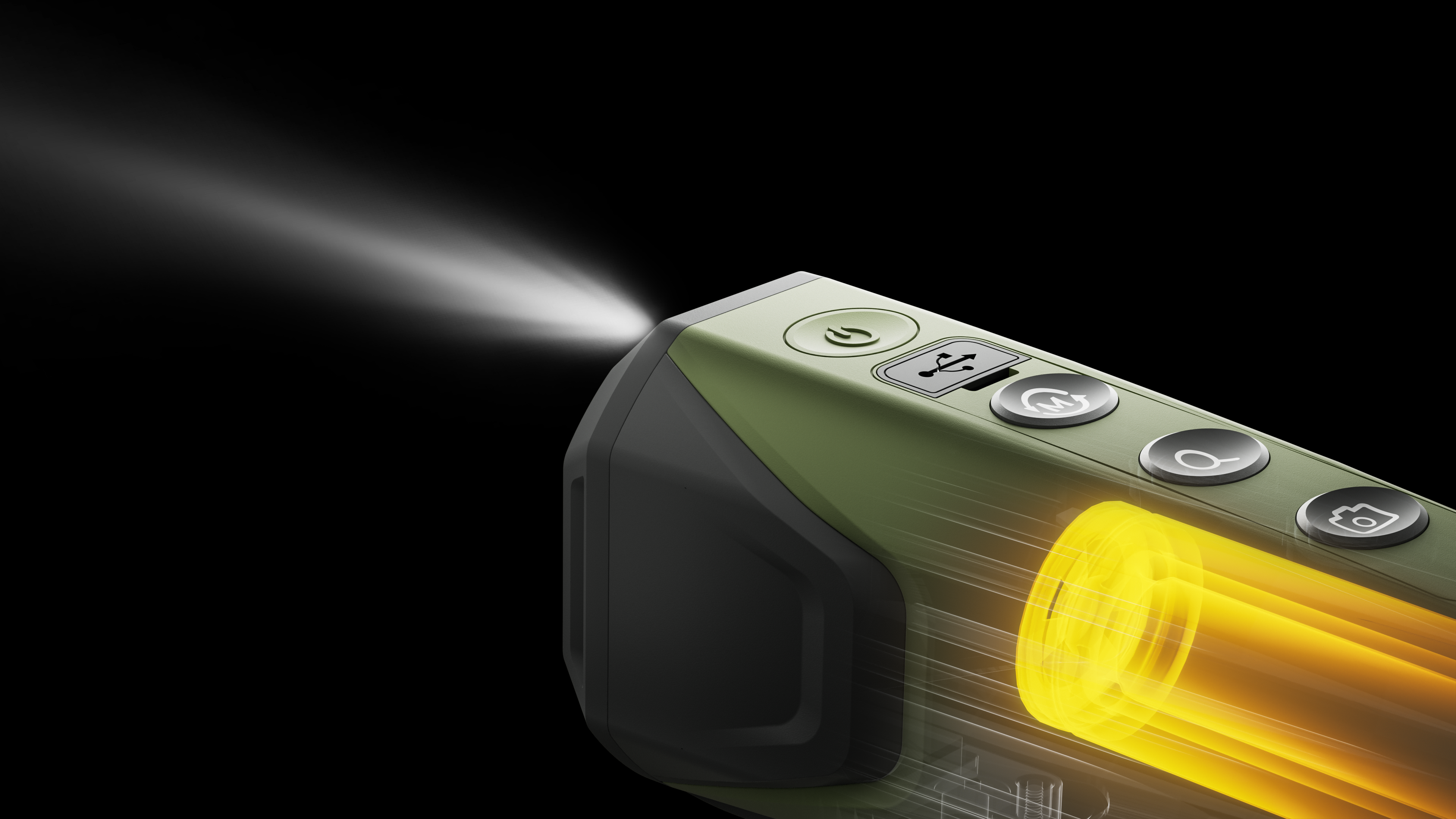

Longer Battery Life, Larger Storage Space

Powered by a high efficiency 5000mAh battery, the monocular remains operational for over 11 hours, providing ample time for outdoor activities without interruption. With built-in 32GB storage, effortlessly save and share your outdoor adventures. Never worry about running out of juice or space while out in the wild.

Zoom into Details

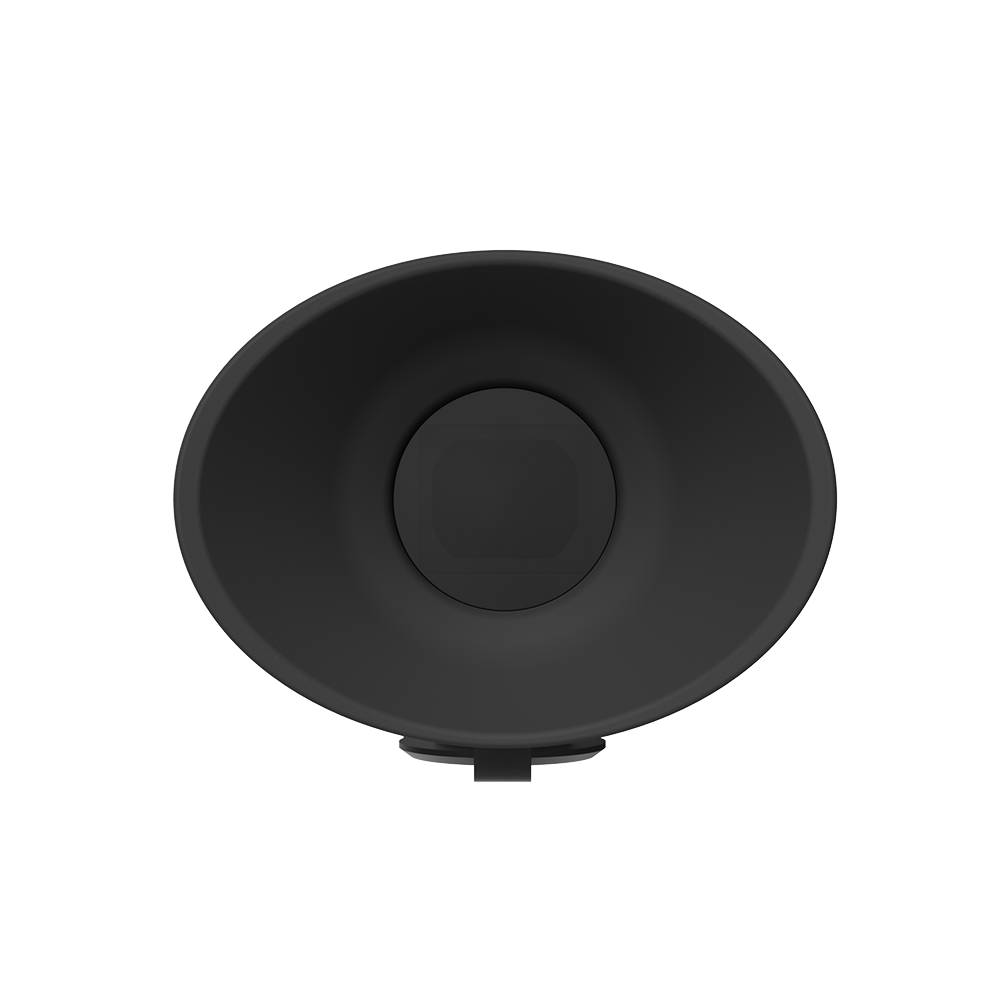

Featuring up to 8x digital zoom capability, the TS004 allows you to zoom in for close-up details or zoom out for a broader perspective, ensuring you capture every moment with precision. What's more, by turning the diopter adjustment knob, users with myopia can leave their glasses behind and still enjoy clear vision. Effortlessly explore nature with TS004 by your side.

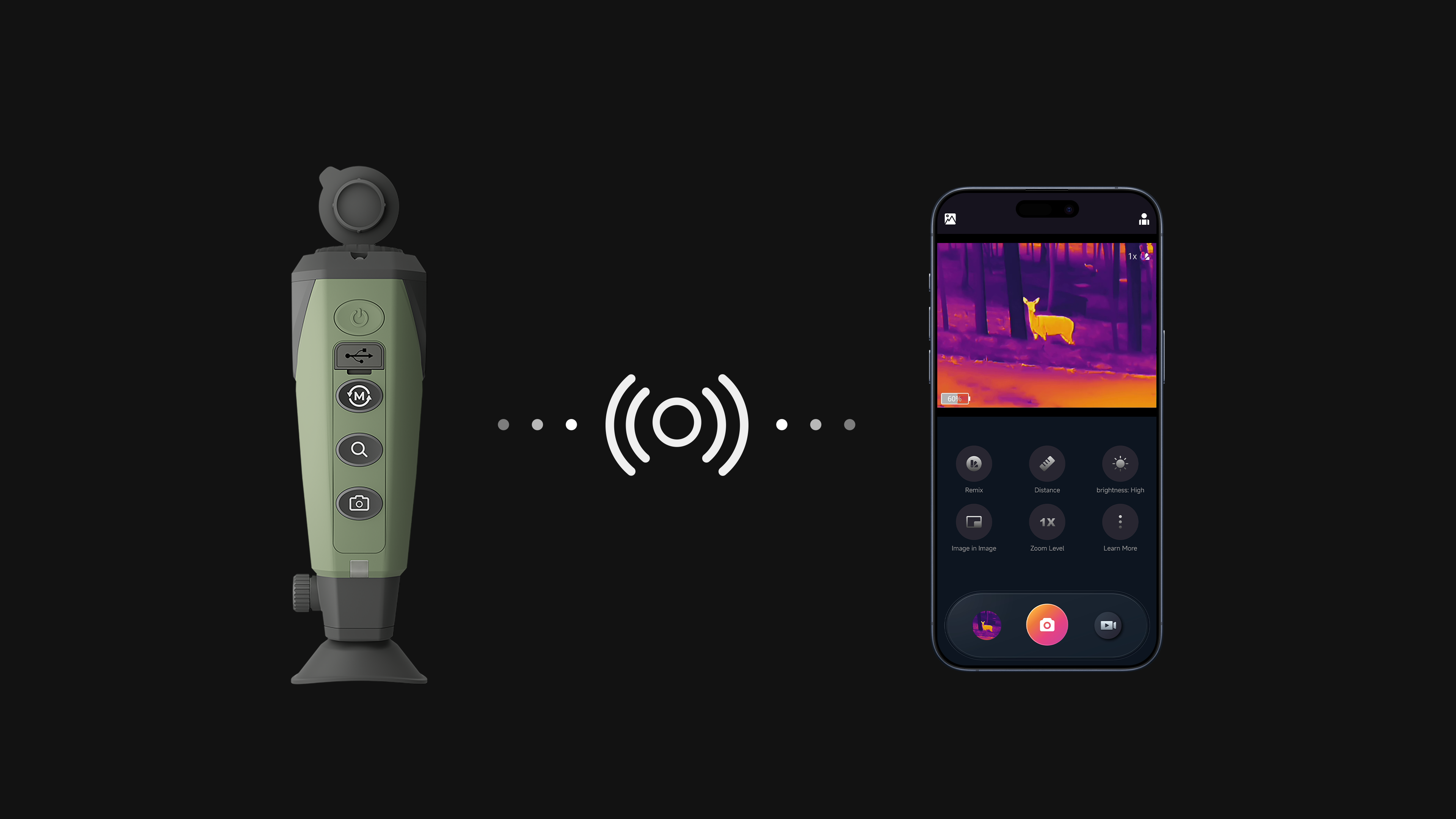

Real-Time Monitoring

Wirelessly connect to your phone via the TopInfrared App for hassle-free live monitoring. Seamlessly capture images and record videos with audio directly through the app, even when offline, ensuring you never miss a moment no matter where your adventures take you.

Explore the Wild with Ease

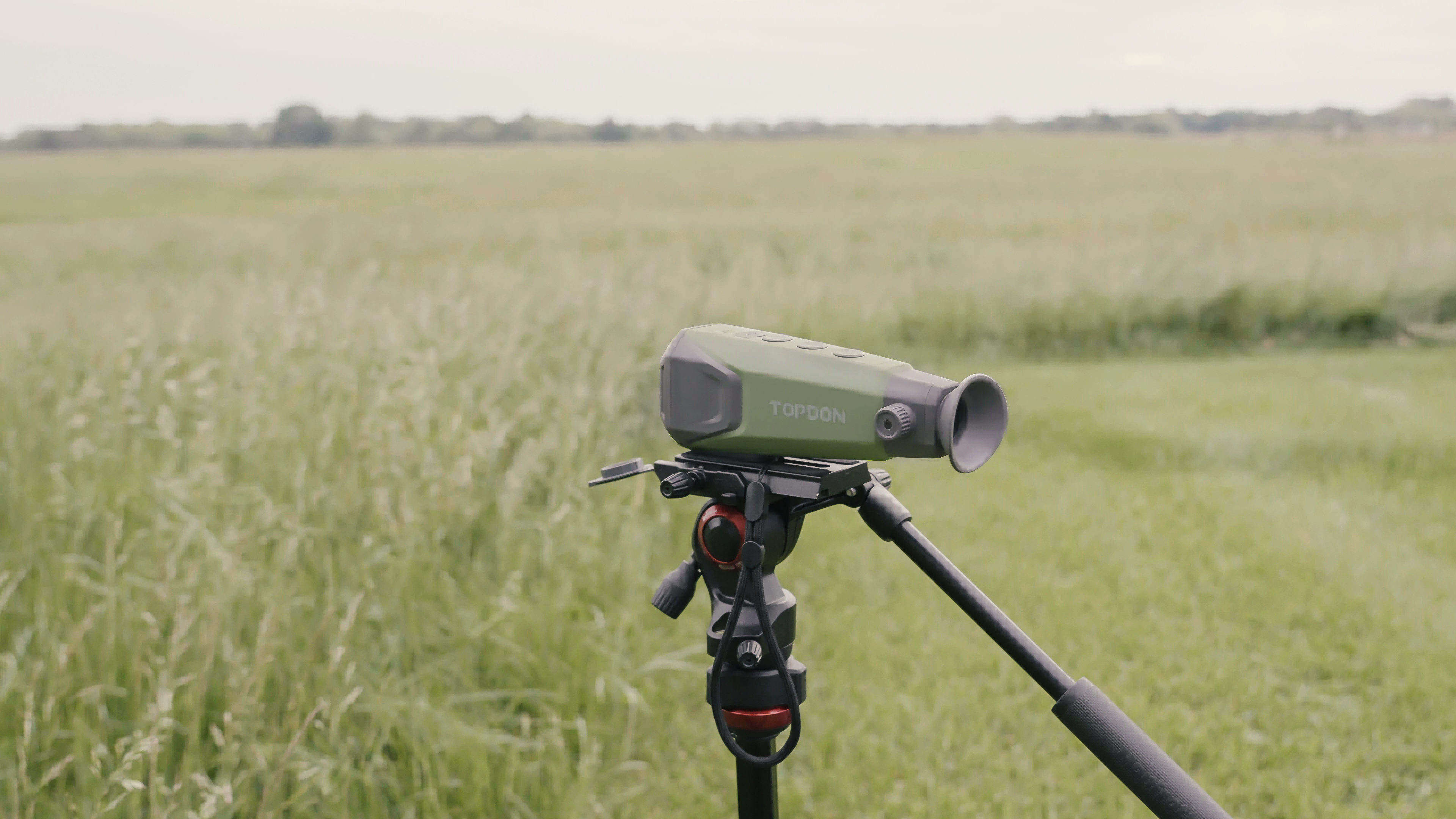

Crafted with your convenience in mind, this pocket-sized thermal monocular boasts a straightforward four-button interface and a waterproof hanging strap, making it an ideal tool for wilderness exploration. Whether observing wildlife single-handedly or connecting to tripods for steady viewing, it offers versatility and ease of use in any outdoor setting.

Unlock More Outdoor Explorations

The thermal imaging monocular is versatile and applicable to numerous outdoor activities, including wildlife observation and protection, search and rescue operations, farming, camping, hiking, and beyond.

Specifications

• • Resolution: 256*192
  • Focal Length: 13mm
  • Pixel Interval: 12μm
  • NETD: < 40mK
  • Detection Range: 450yd
  • Field of View: 13.5° * 10.1°
  • Magnification: 1x, 2x, 4x, 8x
  • Frame Rate: 50Hz
  • Built-in Display: 640 × 480 LCOS Display
  • Battery Capacity: 5000mAh
  • Battery Life (Operating): 11 Hours
  • Storage: Built-in 32GB
  • Protection Level: IP67
  • Weight: 310g
  • Dimension: 180*64*54mm
  • Operating Temperature: -4°F to 113°F (-20°C to 45°C)

Packing List

• • TS004 Thermal Imaging Monocular
  • USB-A to USB-C Cable
  • Hanging Strap
  • Carrying Bag
  • Quick User Guide
